This Contemporary split bedroom home is loaded with luxury and has many rooms with vaulted ceilings throughout. From the impressive porte cochere entrance, you’re welcomed into the huge great room with a vaulted ceiling with sky window, fireplace is flanked by built-ins and sliding doors opening to a vaulted rear porch. The large kitchen makes entertaining easy with an island bar, a prep island and adjacent dining room. The master suite has a fireplace, vaulted ceiling and master bath that offers a whirlpool tub, corner glass shower and a huge 22’ walk-in closet. On the opposing side of the house, two bedrooms share a Jack & Jill bathroom and there is an additional bedroom that could be used as an exercise room. At the end of the bedroom wing, there is large pool room that features a kitchen, fireplace, full bath, and dressing room. The 3-car garage has a safe room and additional storage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

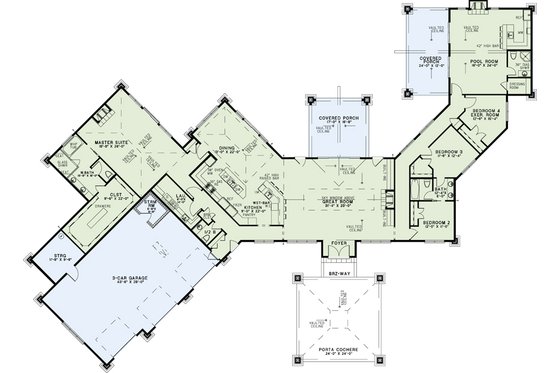

Floor Plan - Main Floor Plan
Full Specs & Features
Depth : 104' 11"
Height : 21'
First Floor: 4183 sq/ft height 9'
Garage: 1933 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Covered Front Porch
Bath - pool room:
width 6' 6" x depth 7' 4"
pool room dressing room:
width 6' 6" x depth 4' 6"
