Large bedrooms give everyone plenty of elbow room in this modern design, while a guest suite invites a grandparent or friend to stay on the main level. Storage abounds throughout the home, with a mudroom, big kitchen pantry, and a huge walk-in closet for the master suite. A bonus room can become a playroom or office.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

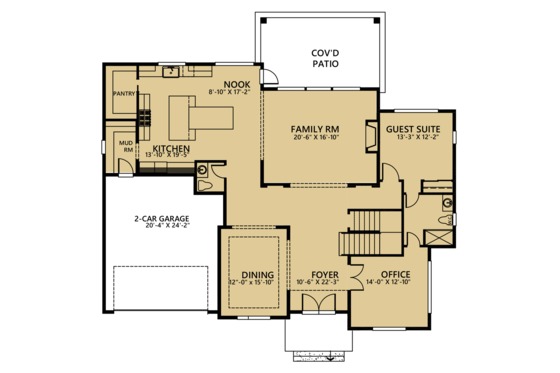

Floor Plan - Main Floor

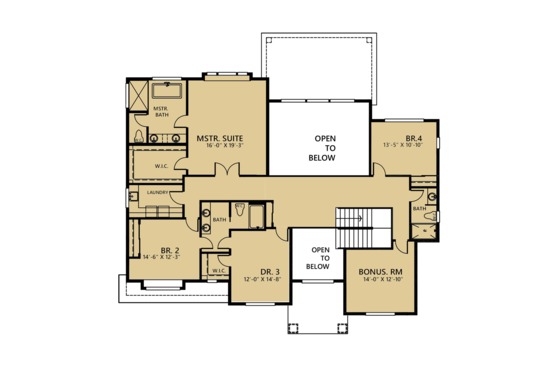

Floor Plan - Upper Floor
Full Specs & Features
Depth : 57'
Height : 29' 9"
Garage : 480 sq/ft
Main Floor : 2192 sq/ft
Patios : 250 sq/ft
Upper Floor : 2043 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 11'
Main Ceiling : 10'
Primary Pitch : 10/12
Roof Framing : Wood
Roof Type : Trusses
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
