Plan 938-107

Photographs may show modified designs.
Plan 938-107

Key Specs


2925
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

Plan Description

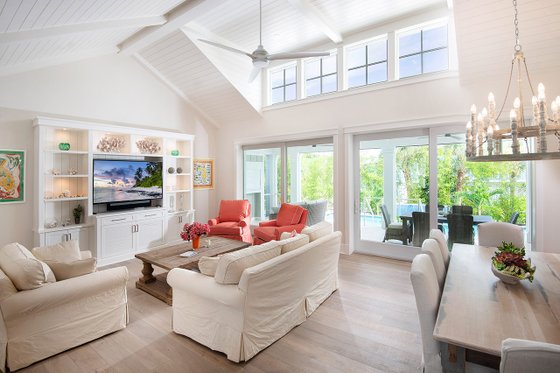

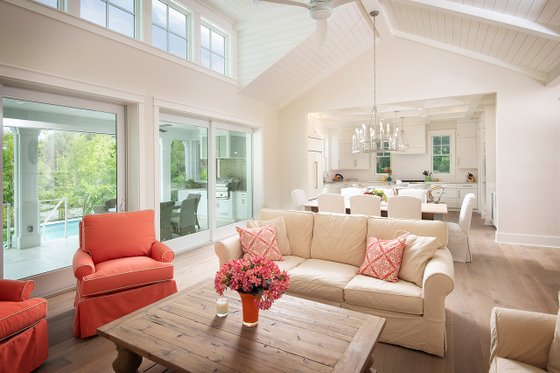

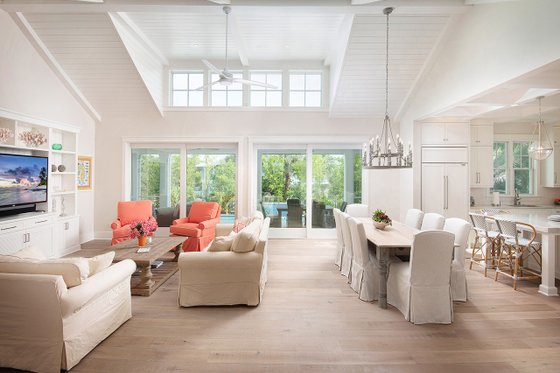

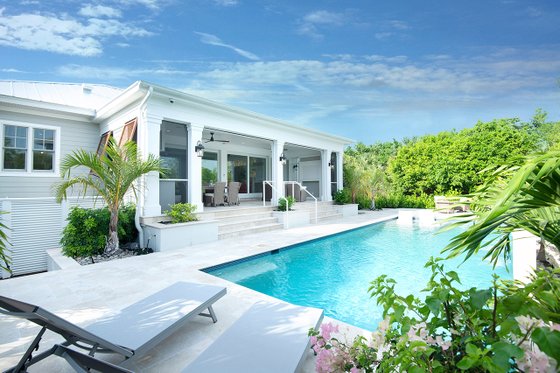

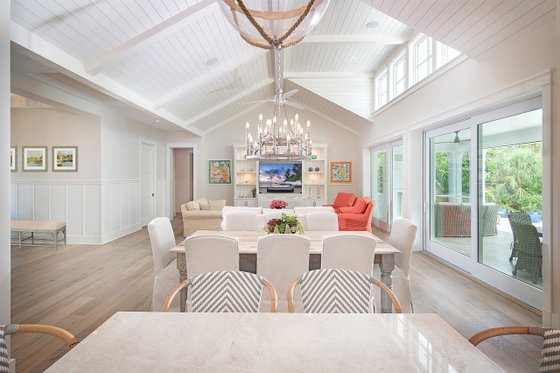

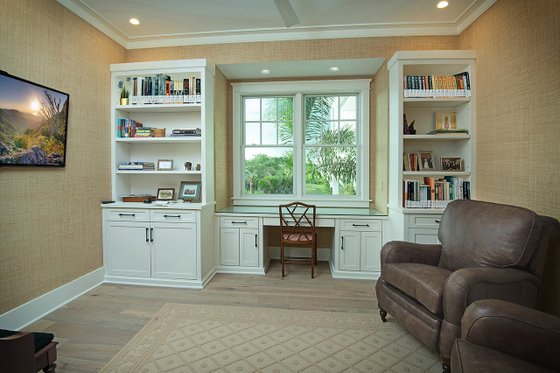

The coastal style Mandevilla Home Plan blends in perfectly with its tropical setting. This family home is designed to accommodate a very active lifestyle. The circular drive pulls up to a prominent covered entry surrounded by columns and topped with gables. The mixed siding is accented with white trim, brackets, and a trellis over each garage door. A single door surrounded by side lights, opens to the generous foyer with gallery access to both wings of the home. Soaring ceilings vault to the center of the Great Room, and extend out to reveal four transom windows. Sun pours in from every direction to this open concept living area. A wall of pocketing-glass sliders open the Great Room completely to the covered lanai. The gourmet kitchen surrounds a large eat-at-island and offers a wet bar, wine cooler and corner walk-in pantry. Just steps away is the outdoor kitchen and dining area, making al fresco meals a breeze. A spacious bedroom with private bath and window seat, the main floor Guest Room looks over the entry courtyard. On the other side of the Foyer is the Den, taking in views of the front of the home. Plenty of room for built-ins and a window seat. The Owner’s Suite is secluded to the rear of the home with a private entrance just beyond the Powder Bath. Sliding glass doors open to a private patio with steps down to the pool area. The bath offers all the amenities included a vanity with dual sinks and private throne room. The massive walk-in closet is a dream come true. The Laundry room is located conveniently around the corner, off the hallway to the garage and the second floor. Upstairs and just past the large storage closet, are two more Guest Bedrooms each with their own private bath. The stairs down to the Garage lands in the Mud Room with extra storage built in under the stairs to accommodate beach supplies, handbags and flip flops.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

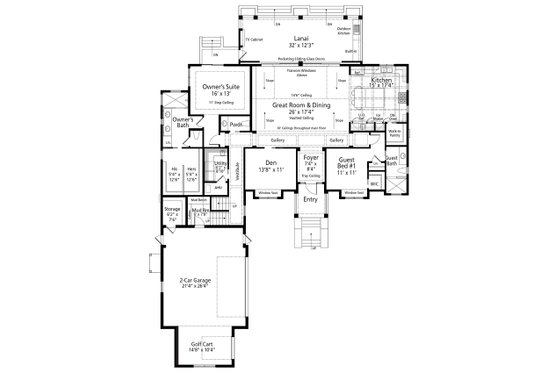

Floor Plan - Main Floor Plan

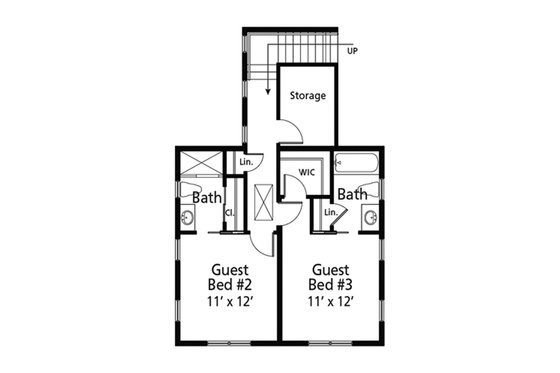

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4
Stories: 2
Garages: 3

Dimension

Depth : 94'
Height : 26' 1"
Width : 66' 2"

Area

Total : 2925 sq/ft
Garage : 807 sq/ft
Main Floor : 2376 sq/ft
Patios : 429 sq/ft
Porch : 77 sq/ft
Upper Floor : 549 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : coffered, tray
Main Ceiling : 14' 6"
Upper Ceiling Ft : 9' 4"

Roof

Primary Pitch : 6/12
Roof Type : hip

Bedroom Features

2 Master Suites
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Storage Area
Wet Bar

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Courtyard
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Screened Porch

More

Additional Half Bath
Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set
  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

  • Exterior Elevations

    The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

  • Cross Section & Interior Elevations

    The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

  • Electrical Plan

    The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$2495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2595.00
5 printed plan sets mailed to you.

CAD Set

$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
