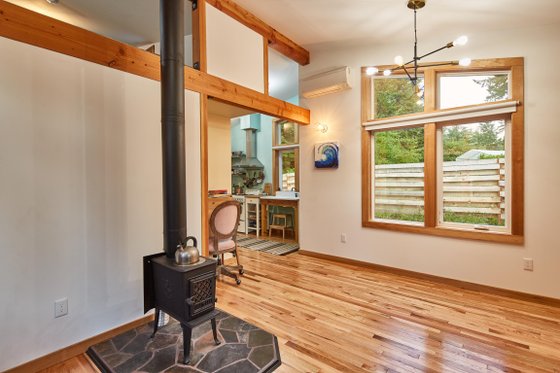

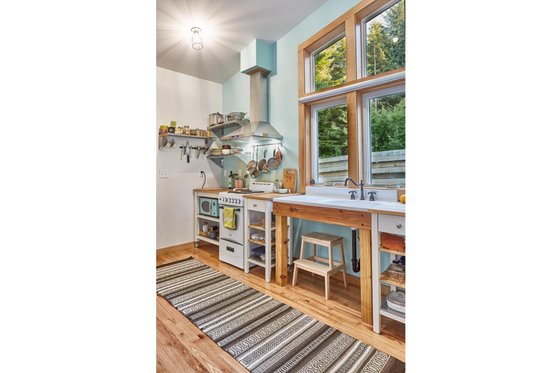

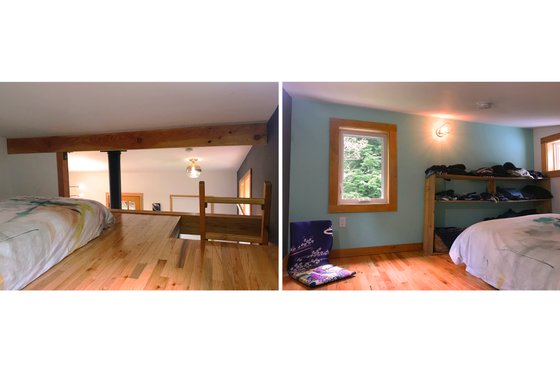

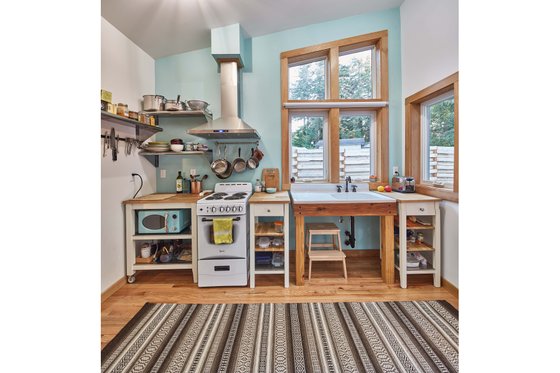

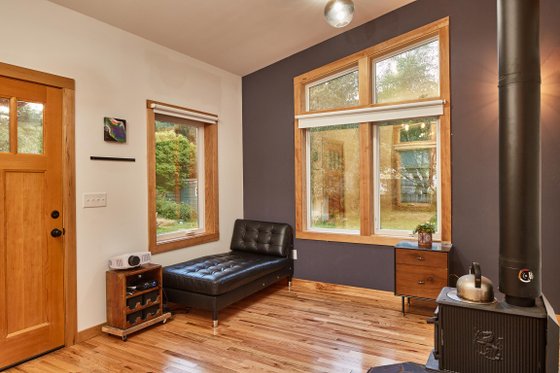

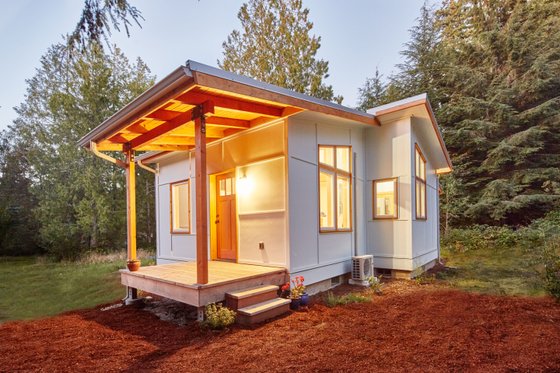

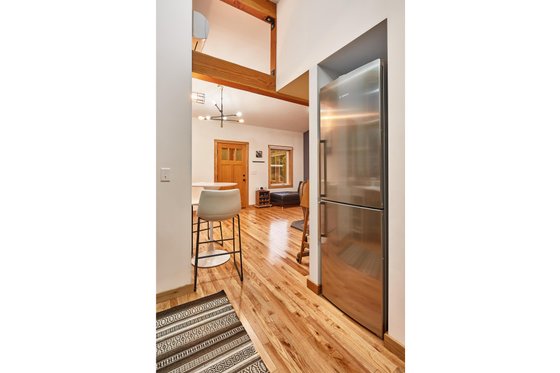

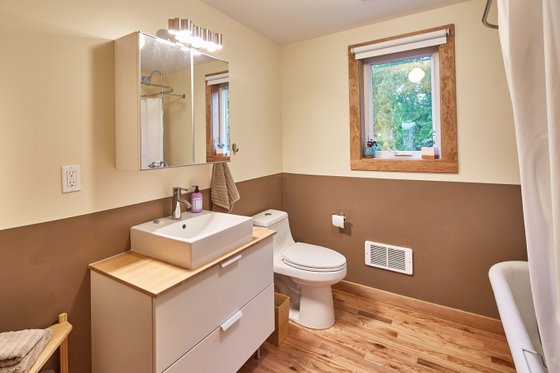

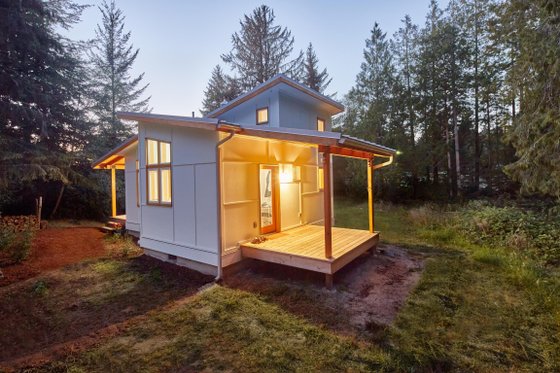

Within less than 400 SF of floor area, this compact mini-home provides all the spaces and amenities to support an expansive lifestyle: • A living area with ample space for gathering and dining, all anchored with a central wood stove. • A full kitchen with fixtures, appliances, and pantry. • A luxurious bathroom with an antique claw-foot tub. • A desk nook for study or work. • A generous sleeping loft with plenty of storage space. • With uninterrupted flow between the living areas, tall vaulted ceilings supported with exposed timber elements, and multiple windows in all directions, the interiors are spacious and light-filled. • The sloped roof extends to shelter two covered outdoor living porches.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

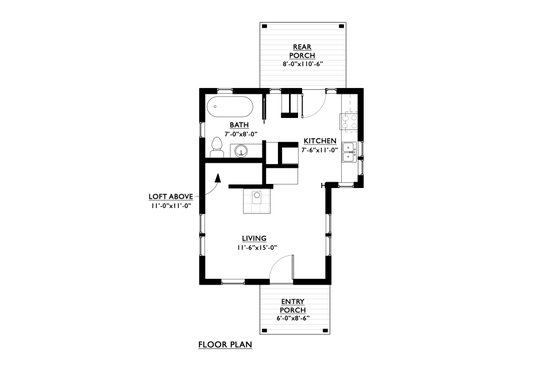

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Bonus : 116 sq/ft
Main Floor : 432 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Variable Ceiling height - Shed roof
Primary Pitch : 2.5:12
Roof Framing : Truss / Stick
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6 & 2x4 Walls, 4x4 & 6x6 Posts
Insulation : As required Per Local Jurisdiction
Additional Room Features
Great Room Living Room
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
If you are building this plan in the state of Oregon, please call us before placing your order, restrictions may apply.
*See important information before purchasing
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

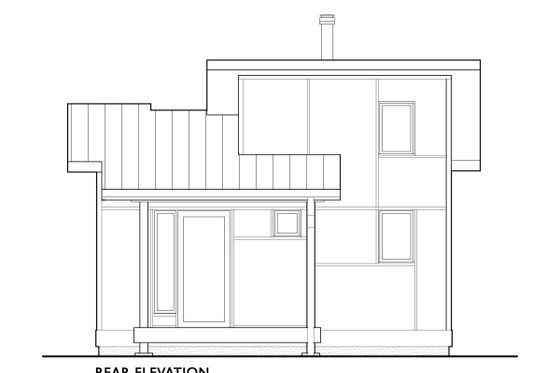

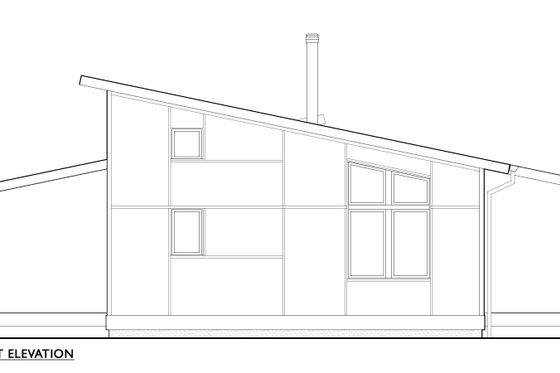

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Roof Framing Plans: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable.

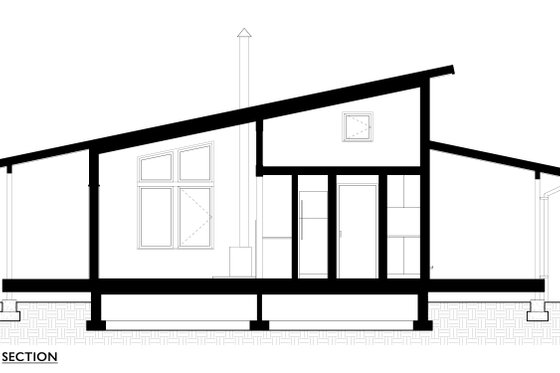

Building Sections: Vertical cutaway views of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Building Details: Shows floor, ceiling, and wall assemblies as well as other typical wall details.
Window and Trim details
Mechanical and Electrical plans
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
It is my charge as an architect to create a built environment that promotes all aspects of human well-being, while respecting and sustaining the multiple eco-systems within the natural world around us. In generating design solutions I seek appropriate use of resources, longevity and adaptability. Nir Pearlson heads an architectural firm in Eugene, Oregon. He received his Architectural Degree from the University of Oregon, following years of traveling and living in diverse countries and cultures. Nir seeks to identify the subtle contextual patterns of each site, listens for the hidden narrative within the client’s program, and celebrates the project's essence through its design. Nir combines hands-on experience as a craftsman and builder, with an artistic attention to composition and detail. Since its foundation in 2003, Nir’s firm has received regional and national acclaim and awards for a diverse body of commercial and residential projects. Practicing architecture as a means to promote the well-being of individuals and communities, the firm designs with rigor and simplicity, and strives for beauty and balance. The resulting designs respect existing architectural tradition and context, lead with design innovation, and seek to sustain our natural world's climate, terrain, resources, and all its living systems. Over the past decade as economies and sensibilities shifted, clients have sought appropriate-scale living. In response, Nir has designed numerous small homes and generated a set of mini-home design principles. These principles are carefully applied in the design of small-footprint houses that feel expansive, yet nurture the diverse activities and needs of families and individuals.
