Plan 930-515

Plan Description


This plan is so fresh and new that the working drawings will take extra time to complete. Please allow up to 10 extra days of processing time.

This Modern home plan is especially designed for a narrow lot. If you are looking for an open floor plan home with a huge great room and you enjoy a large kitchen with an island and an amazing amount of counter space, this plan is for you. However the features do not end there. This design combines amazing features with modern conveniences that make this home perfect for anyone, even a multi-generational home. Bringing in the groceries from the 2-car garage directly into the expansive walk-in pantry couldn’t be easier. And when it comes to accessibility there is nothing better than an elevator. This feature makes this home ideal for anyone with mobility issues. When you take the elevator to the second floor, you’ll find quite a lot up there. Two of the three bedrooms have their own private full baths. The extra storage space is a welcome addition as is the large linen closet. The rear balcony gives two of the bedrooms that resort feel. Speaking of lifestyle, there is nothing better than getting outside. The outdoor kitchen provides the perfect excuse to spend the afternoon outside. With the outdoor fireplace and TV located in the Solana you have the perfect reason to stay out there all evening. If you choose to install a pool, and we suggest that you do, the pool bath located off the patio and kitchen makes entertaining effortless. Of course not every gathering is suited for the outdoors, but never fear, this home has an indoor fireplace that large or small groups can gather around. The owners of this home will definitely appreciate the seclusion the first floor master suite provides. The sliding glass doors give access to the back yard. While the master bath has a very large walk-in closet with a convenient bench seat that disguises a built-in safe. This home has the things you are looking for, however if we’ve missed something you’d like to add, let us know. Most of our homes can be modified to meet your needs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 2

Dimension

Depth : 88' 4"
Height : 29' 10"
Width : 48' 4"

Area

Total : 2921 sq/ft
Decks : 237 sq/ft
Garage : 584 sq/ft
Main Floor : 1808 sq/ft
Patios : 546 sq/ft
Porch : 56 sq/ft
Upper Floor : 1113 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master Bedroom ceiling heights are 11 ft. 6 in. to 12 ft. The Master Bath, Master Closet, and Utility ceiling heights are 10 ft.
Garage Ceiling : 11'
Main Ceiling : 10' 8"
Upper Ceiling Ft : 9' 4"

Roof

Primary Pitch : 6/12

Exterior Wall Framing

Exterior Wall Finish : Stucco/Stone
Framing : Block (Both Levels)

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch
Outdoor Kitchen Grill

More

Elevator

What's included in this plan set


See a sample plan set

Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection.

Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

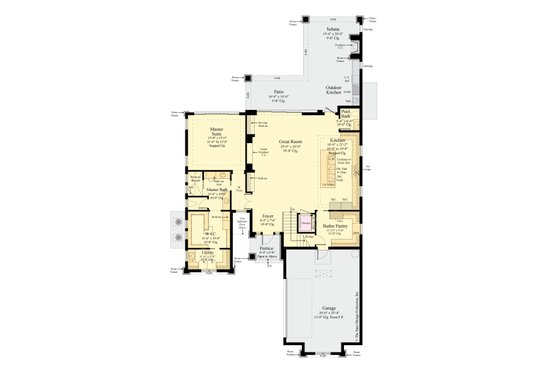

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
