Two master suites make this plan a great choice to appeal to multigenerational families – and they’re both impressive spaces, with large showers, double sinks, and outdoor access. The other two bedrooms (one on this level, the other upstairs next to a large bonus room) also boast private bathrooms. In the middle of the home, the island kitchen flows into the open dining area and the great room. Rugged Craftsman details on the exterior include exposed rafter tails and decorative trusses.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

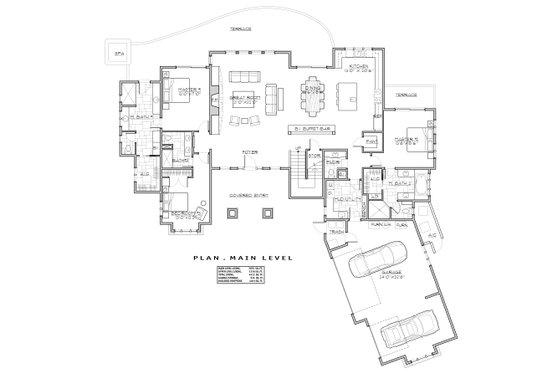

Floor Plan - Main Floor

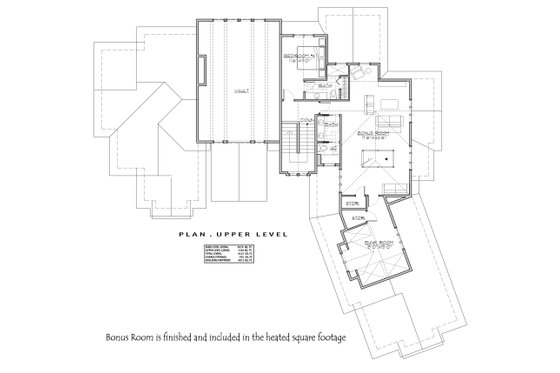

Floor Plan - Upper Floor
Full Specs & Features
Depth : 87'
Height : 28' 4"
Garage : 934 sq/ft
Main Floor : 3076 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Vaulted Great Room
Main Ceiling : 10'
Primary Pitch : 10:12
Roof Framing : Truss/Stick
Roof Type : Composition & Metal
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 6
2 Master Suites
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For View Lot
What's included in this plan set
See a sample plan set
*See important information before purchasing
Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.

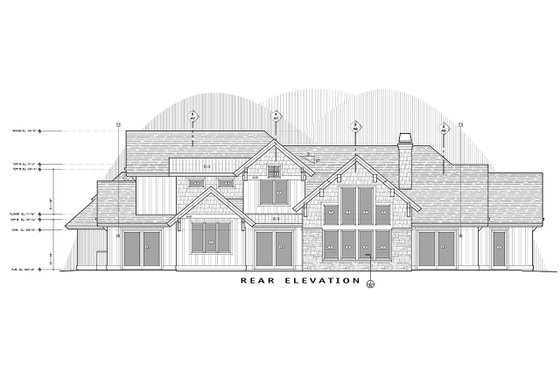

Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
