Plan 20-2284

Photographs may show modified designs.
Plan 20-2284

Key Specs


4683
sq ft

3
Beds

3.5
Baths

1
Floors

3
Garages

Plan Description


An abundance of storage makes this stone Ranch a winner. There are three bedroom suites, with tow located on the finished lower level. The plan can also be built with an unfinished basement, which is included. This plan is not available in zip codes 37748-37880.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

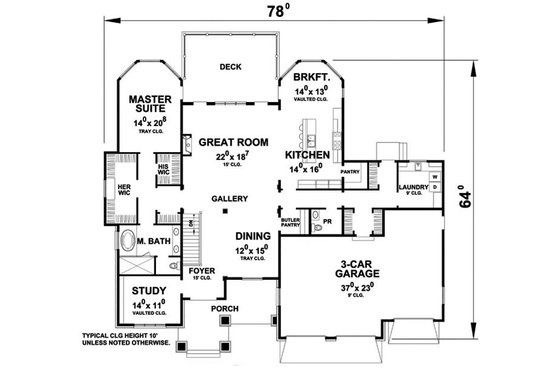

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 64'
Height : 30' 11"
Width : 78'

Area

Total : 4683 sq/ft
Garage : 917 sq/ft
Lower Floor : 1887 sq/ft
Main Floor : 2796 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted ceiling in Study & Breakfast; tray ceiling in Master Bedroom
Lower Ceiling : 9' 10"
Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Shingle
Framing : 2 x 6

Bedroom Features

Lower Level Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

What's included in this plan set


See a sample plan set
  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria
  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1055.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1055.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$1130.00
5 printed plan sets mailed to you.

8 Copy Set

$1250.00
8 printed plan sets mailed to you.

CAD Set

$1846.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$685.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$195.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$125.00
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
