Plan 1058-24

Photographs may show modified designs.
Plan 1058-24

Key Specs


5727
sq ft

5
Beds

5.5
Baths

2
Floors

6
Garages

Plan Description


Included in the plan is a detached garage; location at the discretion of the customer. It is not shown on the front elevation image.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

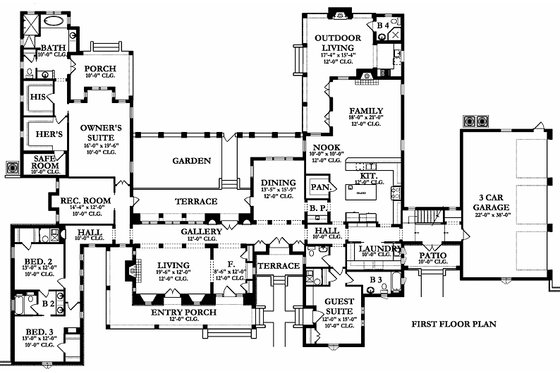

Floor Plan - Main Floor Plan

Reverse

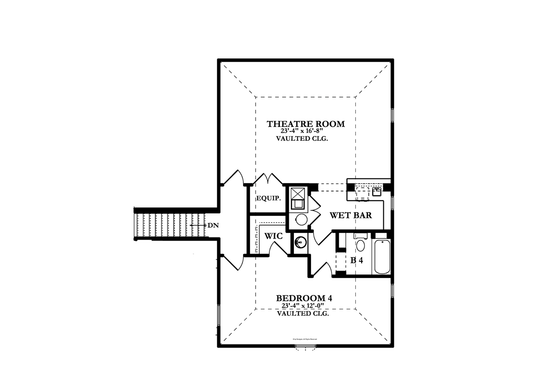

Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Other Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5.5
Stories: 2
Garages: 6

Dimension

Depth : 93'
Height : 27' 7"
Width : 141'

Area

Total : 5727 sq/ft
Bonus: 1003 sq/ft
First Floor: 4724 sq/ft
Garage: 1784 sq/ft
Patio: 98 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : Block (1st Story)/ Wood – 2x4 (2nd Story)

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Safe Room / Hidden Room
Vaulted / Cathedral Ceilings

Garage Features

Detached Garage
Side Entry Garage

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Outdoor Fireplace
Outdoor Kitchen Grill
Wrap Around Porch

More

Jack & Jill Bath

Rooms

Bath 2:

78 sq/ft width 13' x depth 6'

Bath 3:

64 sq/ft width 10' 1" x depth 6' 4"

Bath 4:

44 sq/ft width 6' 8" x depth 6' 8"

Bedroom 2:

156 sq/ft width 13' x depth 12'

Bedroom 2 Closet:

25 sq/ft width 6' 6" x depth 3' 10"

Bedroom 3:

156 sq/ft width 13' x depth 12'

Bedroom 3 Closet:

29 sq/ft width 4' x depth 7' 4"

Breakfast Nook:

100 sq/ft width 10' x depth 10'

Butler's Pantry:

32 sq/ft width 5' 4" x depth 6'

Covered Front Porch:

344 sq/ft

Dining Room:

211 sq/ft width 13' 5" x depth 15' 9"

Family Room:

378 sq/ft width 18' x depth 21'

Foyer:

102 sq/ft width 8' 6" x depth 12'

Gallery:

331 sq/ft width 63' x depth 5' 3"

Garage:

944 sq/ft width 22' x depth 38'

Garage 2:

840 sq/ft

Guest Suite:

180 sq/ft width 12' x depth 15'

Guest Suite Closet:

10 sq/ft width 2' 5" x depth 4' 4"

Kitchen:

285 sq/ft width 18' 7" x depth 15' 4"

Laundry Room:

169 sq/ft width 13' 6" x depth 12' 6"

Living Room:

width 19' 6" x depth 12'

Master Bath:

238 sq/ft width 14' x depth 17'

Master Closet (His):

79 sq/ft width 8' 2" x depth 9' 8"

Master Suite:

width 16' x depth 19' 6"

Optional Bedroom 4:

280 sq/ft width 23' 4" x depth 12'

Optional Theatre Room:

389 sq/ft width 23' 4" x depth 16' 8"

Outdoor Living:

266 sq/ft width 17' 4" x depth 15' 4"

Owner's Porch:

152 sq/ft width 16' 4" x depth 9' 4"

Pantry:

36 sq/ft width 6' x depth 6' 1"

Porch Front:

363 sq/ft

Porch Rear:

178 sq/ft

Powder Room:

width 6' 1" x depth 5' 4"

Recreation Room:

172 sq/ft width 14' 4" x depth 12'

Safe Room:

63 sq/ft width 11' 2" x depth 5' 8"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$3505.00
5 printed plan sets mailed to you.

CAD Set

$3795.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$3795.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x4

$0.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
