Mediterranean 2 story villa with classic Spanish details. Luxury living spaces commence with 2 story foyer and gallery at either direction. Convenient floor plan places 3 car garage next to mud room with pantry, sink, freezer and fridge space. Around the corner, 2 bedrooms share a jack and jill bath. Center of home designed with open layout. Guest suite features built in window seating. Wet bar sits off of kitchen and includes wine cabinet. Master suite is accompanied by a library with built in bookcases and a bay window. Large game room occupies second floor and offers second story views of outdoors.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

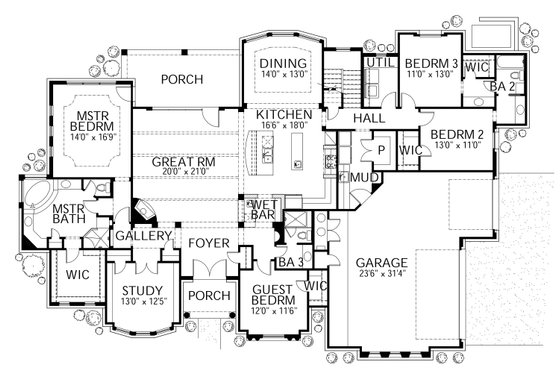

Floor Plan - Main Floor

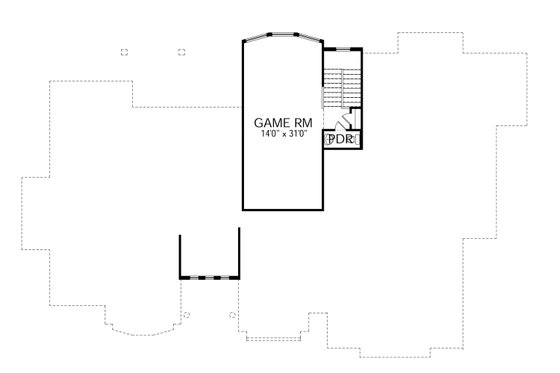

Floor Plan - Upper Floor
Full Specs & Features
Garage : 829 sq/ft
Main Floor : 3001 sq/ft
Porch : 269 sq/ft
Upper Floor : 517 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 6:12
Roof Framing : Stick
Roof Type : Clay/Concrete Tile
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Side Entry Garage
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

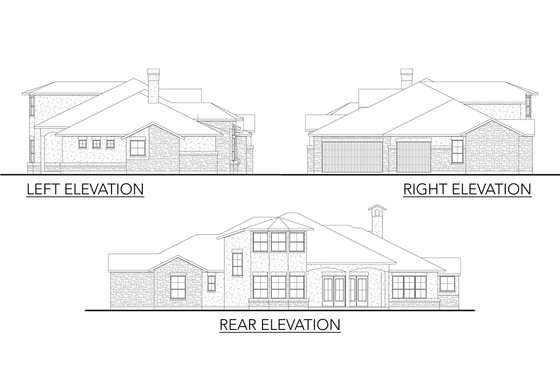

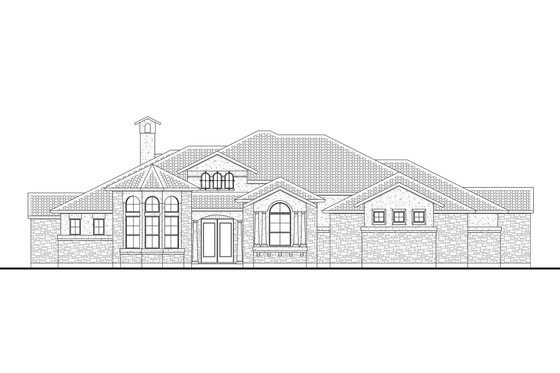

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
