This mediterranean home brings together classic design and function of today’s lifestyle. A centrally located foyer opens up into a great room. To the right, the master wing features the laundry room, dual linen closets and a study. To the left of the foyer are the stairs to the second level and the 2 car garage entry. Immediately ahead is the open concept kitchen, 2 story dining room, and great room. Beyond the kitchen, a private wing houses a one car garage and a separate guest suite. Upstairs, a large game room separates three additional bedrooms. Two bedrooms share a Jack and Jill bath, while the third shares another bath with the game room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

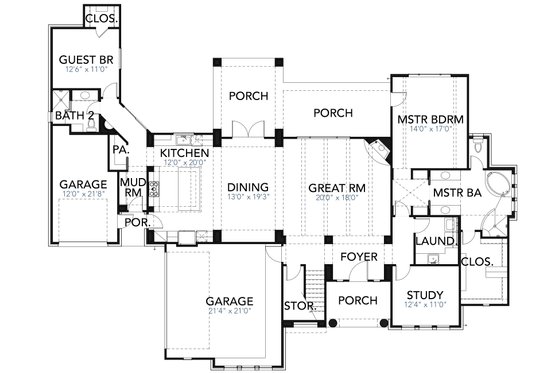

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Garage : 772 sq/ft
Main Floor : 2375 sq/ft
Porch : 518 sq/ft
Upper Floor : 1210 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 11'
Main Ceiling : 10'
Primary Pitch : 6:12
Roof Framing : Stick
Roof Type : Concrete tile
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : 2x4
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Front Entry Garage
Side Entry Garage
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

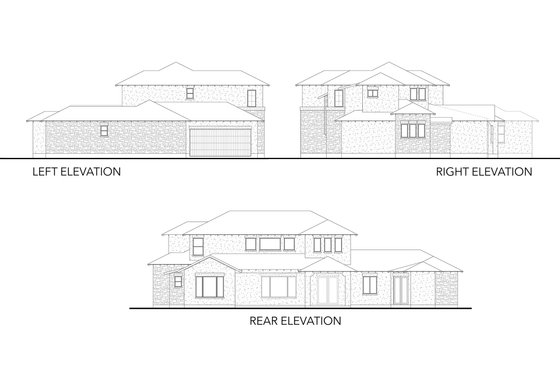

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
