Plan 453-45

Photographs may show modified designs.
Plan 453-45

Key Specs


5219
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This home features a covered drive, media room, ramada, and 4 bedroom suites with private baths. In addition the master suite includes an exercise room and a curved lounge bay.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

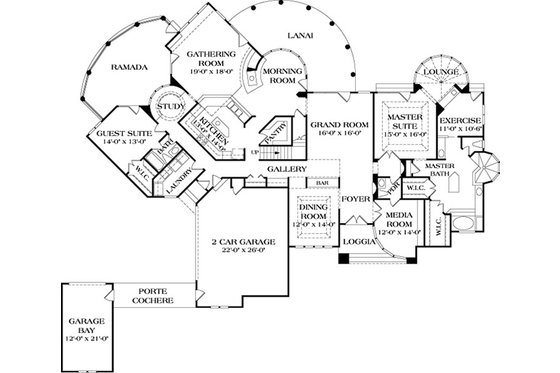

Floor Plan - Main Floor Plan

Reverse
Traditional Floor Plan - Main Floor Plan Plan #453-45

Floor Plan - Upper Floor Plan

Reverse
Traditional Floor Plan - Upper Floor Plan Plan #453-45

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 89' 10"
Height : 40'
Width : 106' 6"

Area

Total : 5219 sq/ft
First Floor: 3322 sq/ft
Second Floor: 1897 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Play Flex Room

Garage Features

Detached Garage
Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony
Breezeway
Covered Front Porch
Covered Rear Porch

More

Suited For Vacation Home
Unusual Shape

Structural Information Provided

Foundation Drawing

Rooms

Bedroom 2:

182 sq/ft width 13' x depth 14'

Bedroom 3:

180 sq/ft width 15' x depth 12'

Bedroom 4:

182 sq/ft width 14' x depth 13'

Den/Office or Bedroom 1:

210 sq/ft width 15' x depth 14'

Dining Room:

168 sq/ft width 12' x depth 14'

Foyer:

88 sq/ft width 8' x depth 11'

Game Room:

168 sq/ft width 12' x depth 14'

Garage:

572 sq/ft width 22' x depth 26'

Gathering Room:

342 sq/ft width 19' x depth 18'

Kitchen:

182 sq/ft width 13' x depth 14'

Laundry Room:

91 sq/ft width 13' x depth 7'

Living Room:

256 sq/ft width 16' x depth 16'

Master Bathroom:

461 sq/ft width 20' 6" x depth 22' 6"

Master Bedroom:

240 sq/ft width 15' x depth 16'
