Plan 1066-27

Photographs may show modified designs.
Plan 1066-27

Key Specs


5451
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

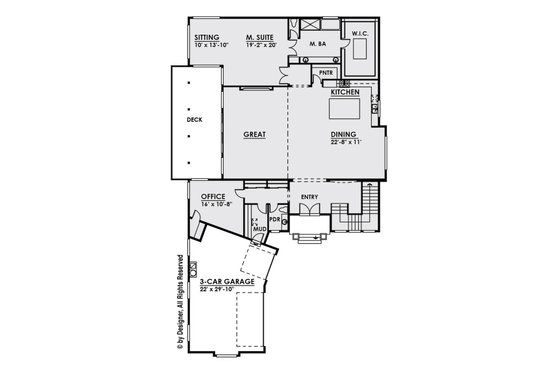

Floor Plan - Main Floor Plan

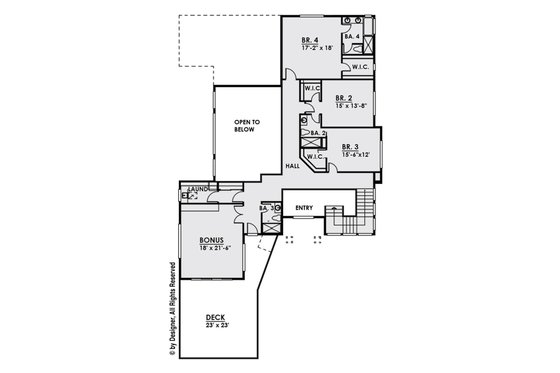

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 100'
Width : 57'

Area

Total : 5451 sq/ft
Decks : 1115 sq/ft
Garage : 788 sq/ft
Main Floor : 3315 sq/ft
Upper Floor : 2136 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 11' 6"
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 5:12
Roof Framing : truss

Exterior Wall Framing

Framing : 2x6
Insulation : R21

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Master Sitting Area
Mud Room
Play Flex Room
Upstairs Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$2100.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$2100.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2100.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

8 Copy Set

$2300.00
8 printed plan sets mailed to you.

CAD Set

$4575.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
