Plan Description


Mediterranean memories of elegant terrace-oriented villas abound in this 5 bedroom 6 bath estate. Indeed, all the major living spaces open to a spacious and meandering verandah, which beckons everyone outdoors. Entry is at the porte cochere. The living room is straight ahead at the center; master suite wing on one side; huge island kitchen, breakfast nook, and so-called "Leisure Room" on the other. Luxurious amenities include an outdoor kitchen, gallery entry to the master suite, formal dining room, study, a morning kitchen in one of the other two ground floor bedrooms, and on the second floor: two spacious guest suites, and a loft overlooking the living room, which adds spatial drama. Monolithic Slab available at $575

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

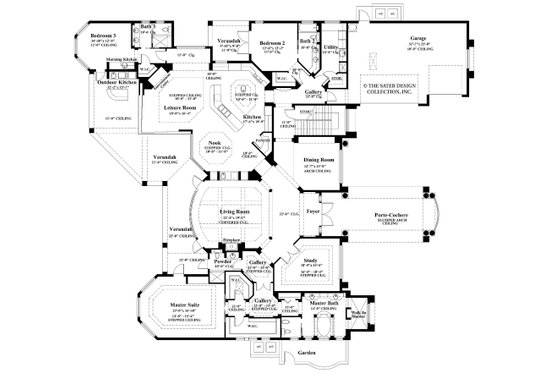

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

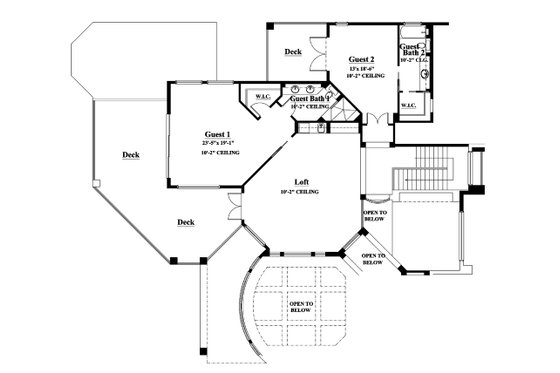

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 6
Stories: 2
Garages: 3

Dimension

Depth : 110' 1"
Height : 33'
Width : 88'

Area

Total : 5816 sq/ft
First Floor: 4385 sq/ft
Second Floor: 1431 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Play Flex Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Rear Porch
Outdoor Kitchen Grill

Rooms

Bedroom 2:

166 sq/ft width 12' 8" x depth 13' 2"

Bedroom 3:

187 sq/ft width 14' 10" x depth 12' 8"

Bedroom 4:

446 sq/ft width 23' 5" x depth 19' 1"

Bedroom 5:

240 sq/ft width 13' x depth 18' 6"

Breakfast Room:

110 sq/ft width 10' x depth 11'

Dining Room:

163 sq/ft width 12' 7" x depth 13'

Foyer:

70 sq/ft width 11' 8" x depth 6'

Garage:

716 sq/ft width 32' 7" x depth 22'

Kitchen:

328 sq/ft width 17' 6" x depth 18' 9"

Leisure Room:

304 sq/ft width 18' 8" x depth 16' 4"

Living Room:

428 sq/ft width 22' 4" x depth 19' 2"

Loft:

474 sq/ft width 21' 11" x depth 21' 8"

Master Bathroom:

128 sq/ft width 10' 8" x depth 12'

Master Bedroom:

387 sq/ft width 23' x depth 16' 10"

Master Closet:

78 sq/ft width 15' x depth 5' 3"

Master Closet Two:

55 sq/ft width 7' 5" x depth 7' 6"

Outdoor Kitchen:

189 sq/ft width 12' 2" x depth 15' 7"

Pantry:

24 sq/ft width 4' 6" x depth 5' 6"

Porch - Right:

95 sq/ft width 9' 10" x depth 9' 8"

Study:

261 sq/ft width 18' x depth 14' 6"

Utility Room:

88 sq/ft width 13' x depth 6' 10"

What's included in this plan set


See a sample plan set

This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.

* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$3957.60
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$7420.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Stem Wall Foundation

$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Monolithic Slab

$488.75
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.

Walk Out Basement

$488.75
Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Block

$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Wood 2x6

$488.75
Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$318.75
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$165.75
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
