Plan Description


Gracefully arched windows and intriguing custom brick work draw eyes to this transitional plan. A vaulted sewing room and a vaulted office are up front, while the spacious kitchen, dining room and vaulted living room flow together at the rear. The luxurious owners? suite boasts a huge walk-in closet and well-appointed bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 73'
Height : 31' 2"
Width : 125'

Area

Total : 6168 sq/ft
Bonus: 190 sq/ft height 10'
First Floor: 4825 sq/ft height 10'
Garage: 902 sq/ft height 10'
Second Floor: 1343 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss

Exterior Wall Framing

Exterior Wall Finish : siding/brick
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

Rooms

Bedroom 2:

168 sq/ft width 12' x depth 14'

Bedroom 3:

168 sq/ft width 12' x depth 14'

Dining Room:

344 sq/ft width 16' x depth 21' 6"

Garage:

795 sq/ft width 26' 6" x depth 30'

Kitchen:

390 sq/ft width 19' 6" x depth 20'

Living Room:

575 sq/ft width 19' 10" x depth 29'

Loft:

146 sq/ft width 18' 4" x depth 8'

Master Suite:

355 sq/ft width 16' 2" x depth 22'

Media Room:

396 sq/ft width 22' 8" x depth 17' 6"

Nook:

193 sq/ft width 14' 6" x depth 13' 4"

Office:

232 sq/ft width 17' x depth 13' 8"

Recreation Room:

430 sq/ft width 21' x depth 20' 6"

Sewing Room:

283 sq/ft width 17' x depth 16' 8"

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

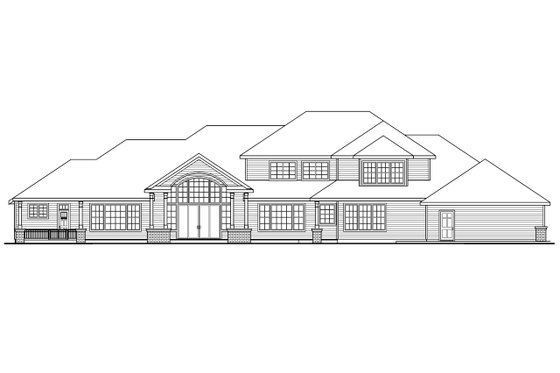

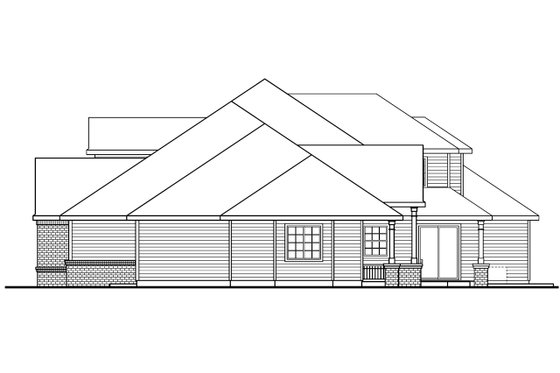

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

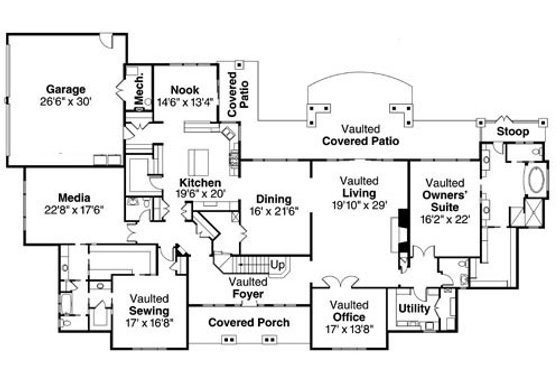

  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
