Plan 23-2298

Photographs may show modified designs.
Plan 23-2298

Key Specs


Plan Sq Ft

629
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

1
Baths

Plan Floors

1
Floors

Plan Garages

0
Garages

Plan Description

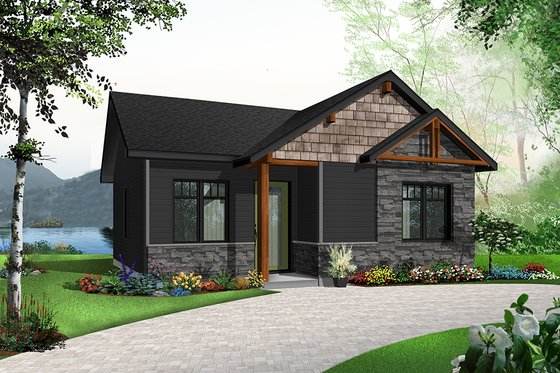

This small & affordable Modern Rustic home design gathers all the essential elements desired by the vast majority of our young customers. The front entrance takes you directly to the family room which is open to the eat-in kitchen. Open floor plan layout and a 9’ ceiling throughout the house are highly sought items and it is very convenient and appreciated in smaller home models. A good size storage closet is also located near the front entrance and the secondary bedroom. The master bedroom’s closet is showing a Ikea model PAX wardrobe, which is very practical because it offers various storage options. In addition, this master bedroom offers direct access to the bathroom through a pocket door. The second bedroom also suggests a PAX Ikea wardrobe (shown on our floor plan). However, the addition of a conventional wardrobe is also easily feasible. A full bathroom with shower-bath combo and an in closet stacked washer and dryer are intended to be more interesting assets when you want to maximize square foot and investment!
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

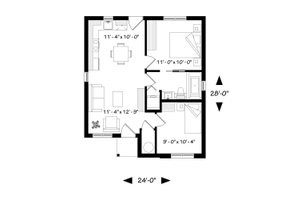

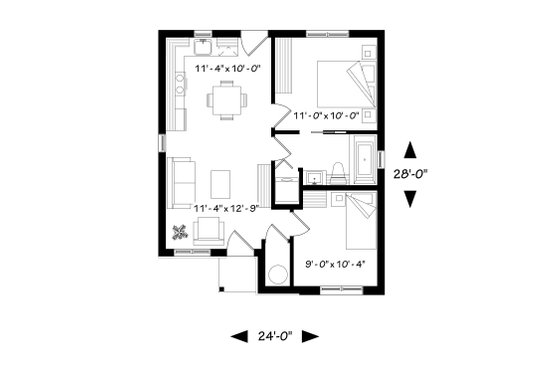

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 28'
Height : 15' 4"
Width : 24'

Area

Total : 629 sq/ft
Main Floor : 629 sq/ft
Porch : 17 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2X6

Outdoor Spaces

Covered Front Porch

What's included in this plan set


See a sample plan set

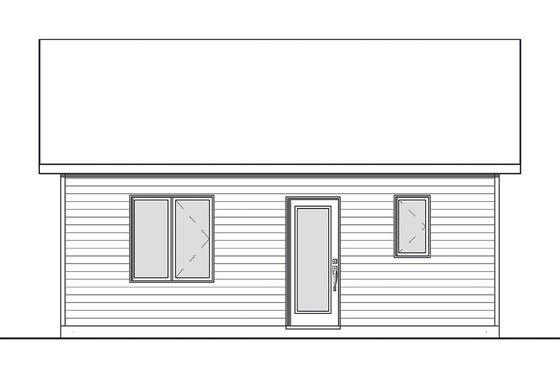

    Exterior Elevations (front, rear, left & right sides) typically include:
    • Floor and ceiling heights
    • Dimensions of standard windows
    • Dimensions of roof overhangs
    • Location of all needed flashings (mention of “typical” in most cases)
    • Height and location of foundation indicated in dashed lines
    • Type of finishing and textures (we write siding, horizontal or vertical but not the company)
    • Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
    Foundation plans typically include:
    • All exterior and interior dimensions
    • Thickness of foundation walls (if variable)
    • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
    • Location of stairwell
    • Location and sizes of windows
    • Location and dimensions of footings (where applicable and required)
    Floor plan(s) typically include:
    • All interior and exterior dimensions (included but not as a schedule)
    • Location and sizes of doors and windows
    • Indication of the structure above (second floor or roof)
    • Indication of details that are available on other pages
    Roof plans typically include:
    • Location of all the different trusses needed
    • The general overcharge of the roof compared to the floor footprint underneath
    Building cross-section(s) and truss details typically include:
    • All the different floor and ceiling heights
    • Dimensions and design of trusses
    • Dimensions and details of overhand
    • Roof pitch on all truss sections
    Construction details typically include:
    • Roof sections
    • Sections of concrete wall with wood connection
    • Section of walls with particulars called out
    • Section of concrete porch and connection with wood frame
    • Foundation particulars in the garage entrance
    • Components of certain types of walls (ex: between garage and living quarters)
    Typical wall sections typically include;
    • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
    • Note: This plan does not include HVAC, electrical and plumbing.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$845.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$970.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1445.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Monolithic Slab

$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.

Floating Slab

$395.00
A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.

Crawlspace

$425.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
