This Spanish inspired courtyard home has a modern flair. The first floor features a tandem 3-car garage, open entertaining space including a wet bar and wine room, a more private kitchen and family room, plus a separate casita accessed via the loggia. The secluded nature of the casita makes it perfect for a home office or guest suite. The second floor contains a luxurious master suite with a contemporary master bath and spacious walk-in closet. There are two additional ensuite bedrooms, plus a game room and studio / exercise room connected by a bath and balcony.
This plan is not available for construction in 77027.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

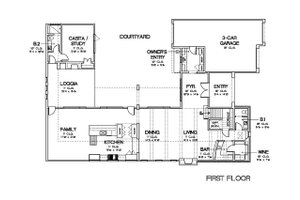

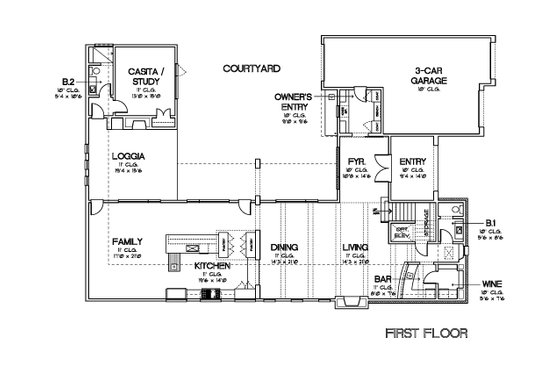

Floor Plan - Main Floor

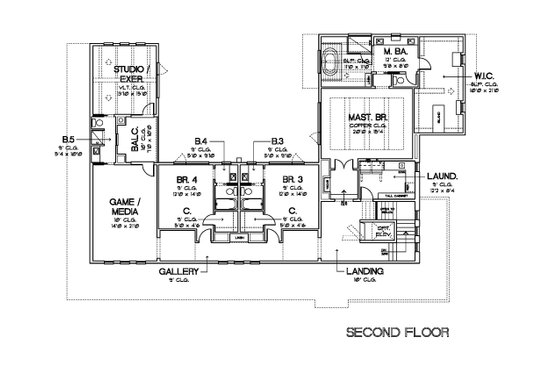

Floor Plan - Upper Floor
Full Specs & Features
Depth : 89' 6"
Height : 29' 6"
Garage : 665 sq/ft
Main Floor : 2489 sq/ft
Porch : 535 sq/ft
Upper Floor : 2612 sq/ft
