Plan 124-691

Key Specs


Plan Sq Ft

6309
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

5.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Plan Description


Northwest Home Plans - The exterior of this exceptionally large, richly windowed Northwest home plan is a delight to behold. Its expansive interior offers a multitude of gathering spaces, including a library, dining room, and vaulted living room. Two work islands add to the abundant counter space in the gourmet kitchen.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

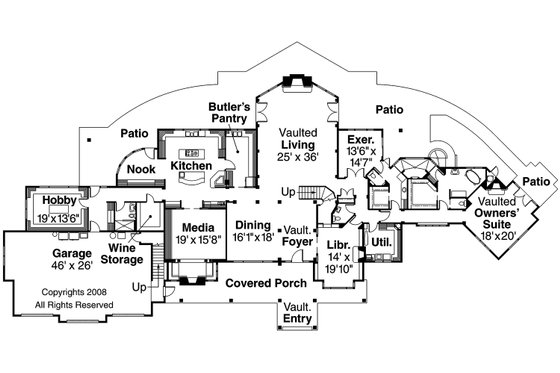

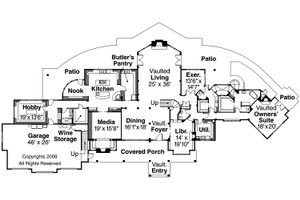

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

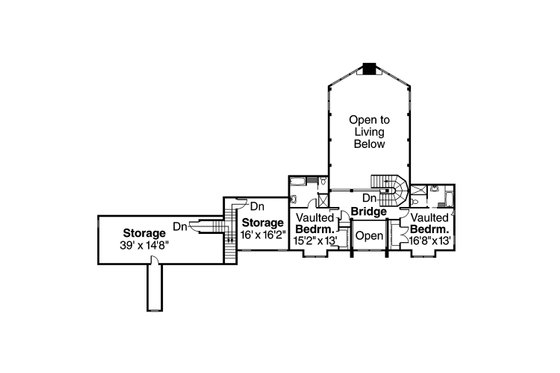

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 5.5
Stories: 2
Garages: 3

Dimension

Depth : 80' 2"
Height : 33' 6"
Width : 168' 10"

Area

Total : 6309 sq/ft
Bonus: 1000 sq/ft height 10'
First Floor: 5315 sq/ft height 10'
Garage: 1335 sq/ft height 10'
Second Floor: 994 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 25 psf

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Unfinished Future Space
Wine Cellar

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Wrap Around Porch

More

Unusual Shape

Rooms

Bedroom 2:

258 sq/ft width 16' x depth 16' 2"

Bedroom 3:

216 sq/ft width 16' 8" x depth 13'

Dining Room:

251 sq/ft width 16' 1" x depth 15' 8"

Library:

297 sq/ft width 15' x depth 19' 10"

Living Room:

900 sq/ft width 25' x depth 36'

Master Suite:

306 sq/ft width 17' x depth 18'

Media Room:

297 sq/ft width 19' x depth 15' 8"

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

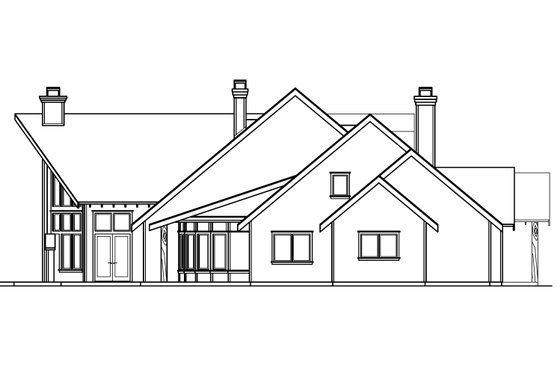

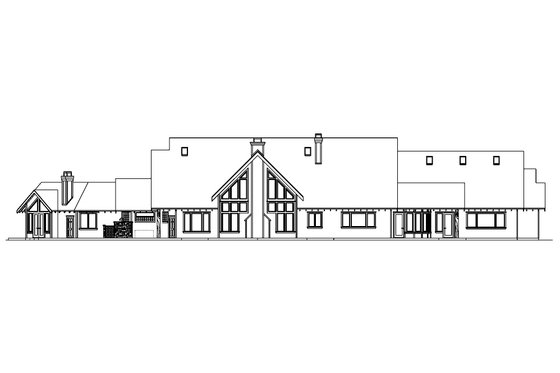

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing


Plan Options

PDF Print Set

$2112.25
A non-modifiable, print only PDF file

5 Copy and PDF Set

$2533.85
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Eight Copy and PDF Set

$2669.85
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Master Set

$4271.25
An unlocked, modifiable PDF file

CAD Set

$4687.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Master Builder Package

$5155.25
Includes CAD Set, PDF Masters and Unlimited Build License

Single Set

$1687.25
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$446.25
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$68.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$1687.25
Additional Use License.

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
