Plan 1042-11

Photographs may show modified designs.
Plan 1042-11

Key Specs


6530
sq ft

13
Beds

9
Baths

2
Floors

4
Garages

Plan Description


This four-plex combines straight-forward, cost-effective construction with high curb appeal. Front and rear porches, exterior storage and individual garages help attract buyers. Nine foot ceilings, large sunny windows, and a functional, open and efficient floor plan add even more value. The 2nd floor has three well proportioned bedrooms including a large master with a walk-in closet. The larger end unit is ADA (handicapped) compliant and comes with big bay windows and a huge master bedroom. These plans come complete with comprehensive green specifications, meeting the EPA's Energy Stars "Designed to Earn" program.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Other Floor Plan

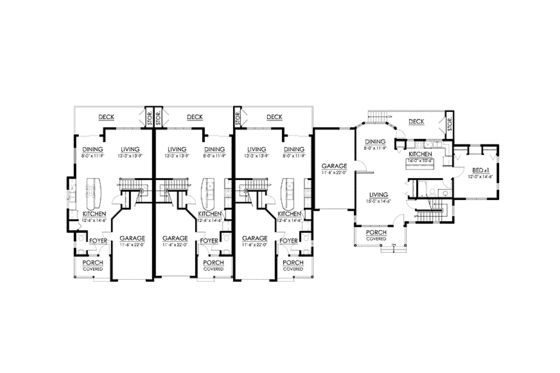

Floor Plan - Main Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 13
Baths : 9
Stories: 2
Garages: 4

Dimension

Depth : 49'
Height : 34'
Width : 121'

Area

Total : 6530 sq/ft
First Floor: 660 sq/ft
First Floor: 630 sq/ft
First Floor: 630 sq/ft
First Floor: 910 sq/ft
Second Floor: 870 sq/ft
Third Floor: 870 sq/ft
Third Floor: 870 sq/ft
Third Floor: 1090 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Roof Type : Composition
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Main Floor Laundry

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Deck

Rooms

Bedroom 1:

174 sq/ft width 12' x depth 14' 6"

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 2:

156 sq/ft width 13' x depth 12'

Bedroom 3:

120 sq/ft width 10' x depth 12'

Bedroom 3:

120 sq/ft width 10' x depth 12'

Bedroom 3:

120 sq/ft width 10' x depth 12'

Bedroom 3:

174 sq/ft width 12' x depth 14' 6"

Dining Room:

94 sq/ft width 8' x depth 11' 9"

Dining Room:

94 sq/ft width 8' x depth 11' 9"

Dining Room:

94 sq/ft width 8' x depth 11' 9"

Dining Room:

94 sq/ft width 8' x depth 11' 9"

Garage:

253 sq/ft width 11' 6" x depth 22'

Garage:

253 sq/ft width 11' 6" x depth 22'

Garage:

253 sq/ft width 11' 6" x depth 22'

Garage:

253 sq/ft width 11' 6" x depth 22'

Kitchen:

181 sq/ft width 12' 6" x depth 14' 6"

Kitchen:

181 sq/ft width 12' 6" x depth 14' 6"

Kitchen:

181 sq/ft width 12' 6" x depth 14' 6"

Kitchen:

168 sq/ft width 16' x depth 10' 6"

Living Room:

182 sq/ft width 13' 3" x depth 13' 9"

Living Room:

182 sq/ft width 13' 3" x depth 13' 9"

Living Room:

182 sq/ft width 13' 3" x depth 13' 9"

Living Room:

217 sq/ft width 15' x depth 14' 6"

Master Bedroom:

182 sq/ft width 13' 3" x depth 13' 9"

Master Bedroom:

182 sq/ft width 13' 3" x depth 13' 9"

Master Bedroom:

182 sq/ft width 13' 3" x depth 13' 9"

Master Bedroom:

217 sq/ft width 15' x depth 14' 6"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

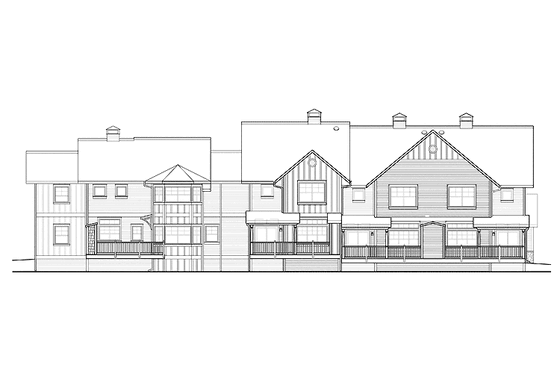

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1500.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
