Plan 423-48

Photographs may show modified designs.
Plan 423-48

Key Specs


696
sq ft

1
Beds

1
Baths

2
Floors

0
Garages

Plan Description


Inspired by yesterday, designed for today. Set yourself apart with this charming re-creation. Small accessory dwelling unit contains all the comforts of home. Spiral staircase adds unique touch.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

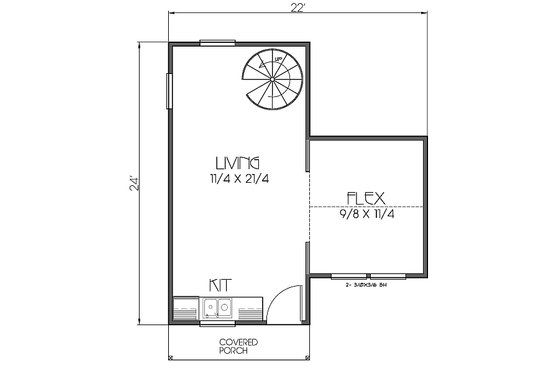

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 2
Garages: 0

Dimension

Depth : 27'
Height : 22'
Width : 22'

Area

Total : 696 sq/ft
Main Floor : 408 sq/ft
Porch : 36 sq/ft
Upper Floor : 288 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Play Flex Room

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Suited For Vacation Home
Wheelchair Adaptable

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

What's included in this plan set


See a sample plan set
  • Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

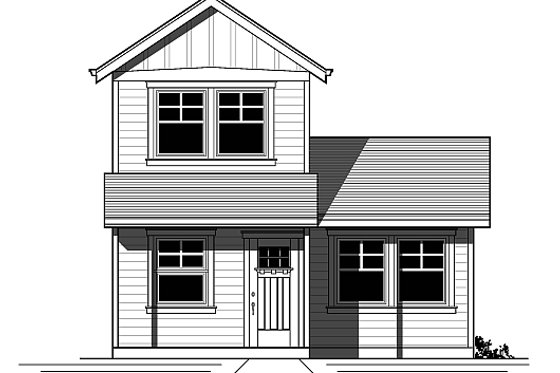

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Showing room dimensions, wall partitions, windows, etc.
  • Floor framing and roof framing
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Notes and details relevant to the IRC (may or may not be applicable in all locations)

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$650.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$750.00
5 printed plan sets mailed to you.

CAD Set

$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$550.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$0.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
