This plan can be customized!
Full Specs & Features
Exterior Wall Framing
Structural Information Provided
What's included in this plan setSee a sample plan set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

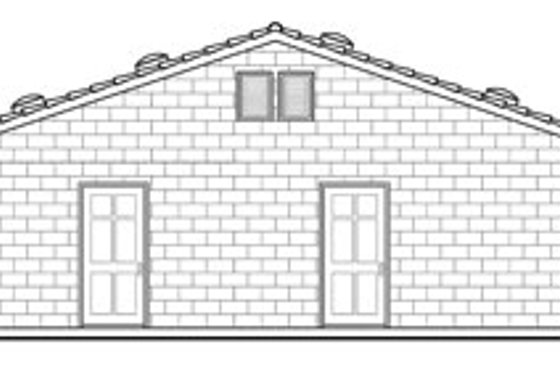

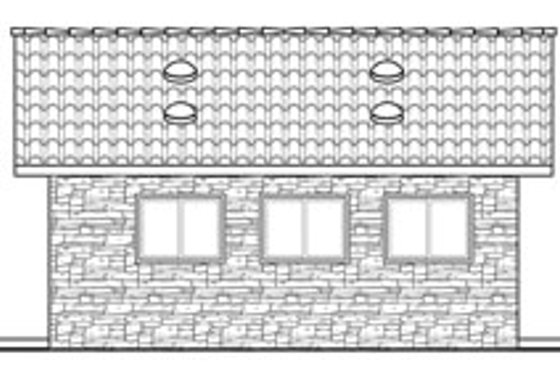

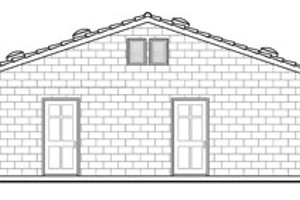

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
|5 Copy Set||$200.00||5 printed plan sets mailed to you.|
|8 Copy Set||$250.00||8 printed plan sets mailed to you.|
|PDF Set Best Value!||$275.00||PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Slab||$0.00||Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Copies||$12.50/each||Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
