Plan Description


Charming Carriage House

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

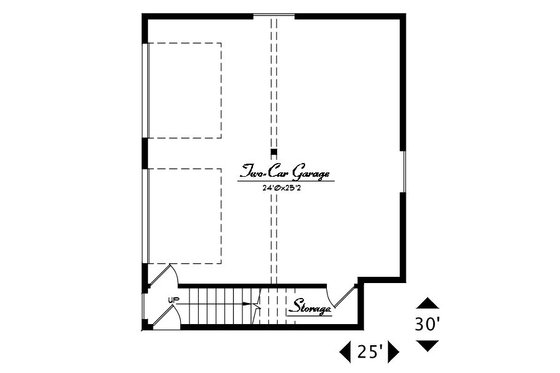

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

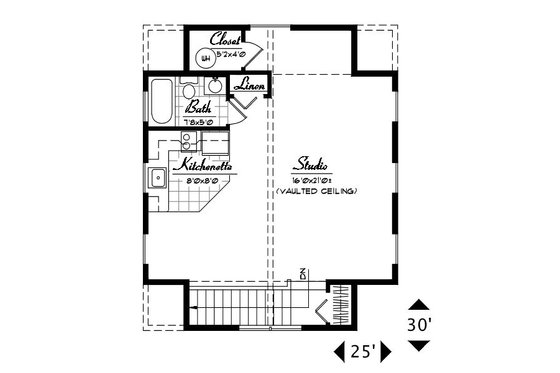

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 2
Garages: 2

Dimension

Depth : 25'
Height : 23'
Width : 30'

Area

Total : 727 sq/ft
Garage : 641 sq/ft
Main Floor : 732 sq/ft
Storage : 70 sq/ft
Upper Floor : 636 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted from 8'-10" to 12'-9" at Living
Lower Ceiling : 8'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : 2x10 Rafters
Roof Load : 25# Snow
Roof Type : Architectural Comp
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Cedar Shingle/ Fiber Cement or Cedar Lap
Framing : 2"x6"
Insulation : R-21 at Exterior Walls
Seismic Rating : DI
Wind Rating : 110mph (or less)

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Play Flex Room
Storage Area
Workshop

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

More

Empty Nester
Suited For Vacation Home

Code Compliance

Irc 2003

Structural Information Provided

Foundation Drawing
Structural 2nd Floor Framing
Structural Calculations
Structural Notes
Structural Roof Framing

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

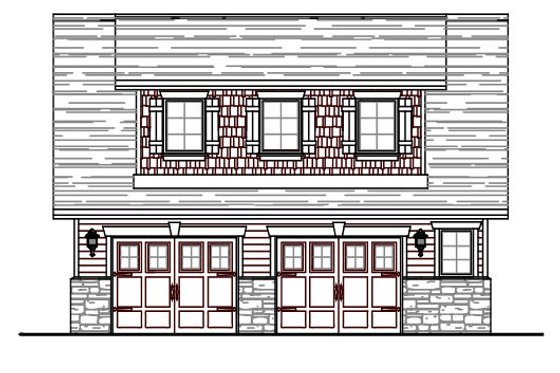

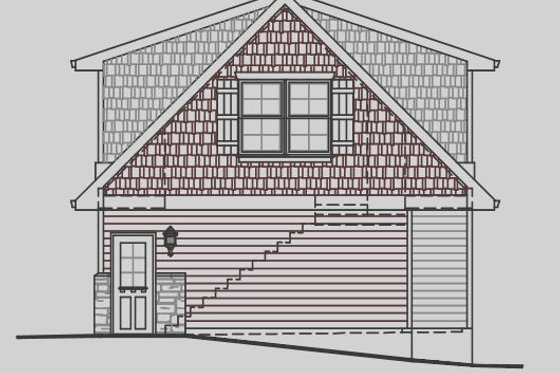

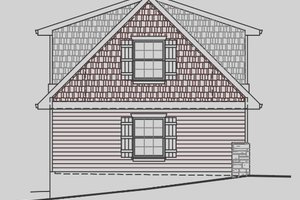

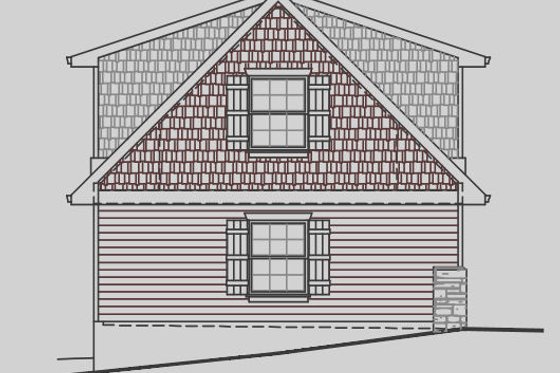

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
