Plan 1058-19

Photographs may show modified designs.
Plan 1058-19

Key Specs


7363
sq ft

5
Beds

5
Baths

2
Floors

4
Garages

Plan Description


Active families will appreciate the abundant amenities in this luxurious-yet-practical home. Among the many indoor-outdoor features are courtyards, porches, a secluded garden, and even a second-floor loggia. The kitchen’s generous island creates a contemporary hangout in the casual zones of the first floor. Every bedroom offers a walk-in closet. Other standout details include the generous utility room, a wine cellar connected to the dining room, and the master suite’s thoroughly upscale bathroom. Kids and visitors will love the huge game room and wet bar upstairs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

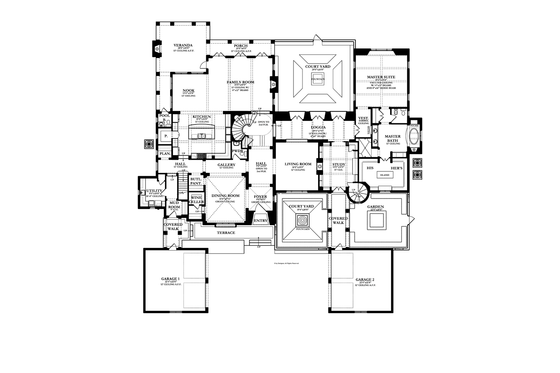

Floor Plan - Main Floor Plan

Reverse

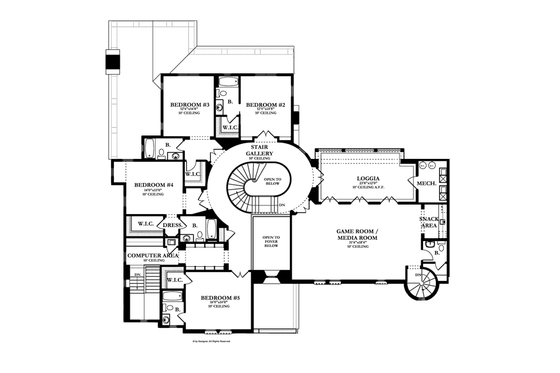

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 4

Dimension

Depth : 108'
Height : 32'
Width : 105' 4"

Area

Total : 7363 sq/ft
First Floor: 4575 sq/ft
Garage: 1152 sq/ft
Second Floor: 2788 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Mud Room
Upstairs Laundry
Vaulted / Cathedral Ceilings
Wine Cellar
Workshop

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace

Rooms

Balcony:

298 sq/ft

Bedroom 2:

width 12' 4" x depth 14' 8"

Bedroom 3:

width 12' 4" x depth 14' 8"

Bedroom 4:

width 14' x depth 13'

Bedroom 5:

width 16' x depth 14'

Courtyard:

width 19' 4" x depth 20' 8"

Courtyard:

width 29' x depth 26'

Dining:

width 15' x depth 17' 6"

Foyer:

width 9' x depth 9'

Game Room:

width 31' 4" x depth 18' 4"

Garden:

width 22' x depth 20' 8"

Hall:

width 9' x depth 13'

Kitchen:

width 21' 8" x depth 16' 8"

Living Room:

width 16' x depth 18'

Loggia:

width 29' 5" x depth 7'

Loggia:

width 23' 8" x depth 12'

Master Bedroom:

width 19' 4" x depth 19' 4"

Porch Rear:

596 sq/ft width 24' x depth 6'

Porch Rear:

596 sq/ft

Study:

width 13' x depth 15'

Utility:

width 9' 5" x depth 10' 8"

Verandah:

width 20' x depth 18' 8"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$4375.00
5 printed plan sets mailed to you.

CAD Set

$4665.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$4665.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Slab

$250.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
