Plan 1058-16

Photographs may show modified designs.
Plan 1058-16

Plan Description

From the private courtyard in front to the network of decks and loggias in back, this splendid luxury home prioritizes indoor-outdoor connections. Highlights include an easy-to-access guest suite on the main level (ideal for hosting an elderly relative or an au pair), the cabana with its summer kitchen, and the party-ready club room upstairs. A guest apartment above the garage offers a private space for a young adult or a short-term tenant. Don't miss the master suite's fireplace-warmed sitting room, huge closet, and nearby exercise room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 4


Depth : 118'
Height : 38'
Width : 98' 8"


Total : 7411 sq/ft
First Floor: 3458 sq/ft height 11'
Garage: 1405 sq/ft
Second Floor: 3953 sq/ft height 11'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : ICF (Insulated Concrete Forms) Block ACC Block

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Upstairs Laundry
Wine Cellar

Garage Features

Front Entry Garage
Golf Cart Storage
Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill
Wrap Around Porch


Wheelchair Adaptable



120 sq/ft

Bedroom 2:

width 14' 6" x depth 13'

Bedroom 3:

width 14' x depth 13'

Bedroom 4:

width 11' 6" x depth 13' 8"


width 10' 6" x depth 8'


319 sq/ft width 18' 8" x depth 16'

Club Room:

width 18' x depth 34'

Dining Room:

width 13' 8" x depth 14' 4"

Exercise Room:

width 10' x depth 11'

Family Room:

width 22' x depth 17'


width 14' x depth 9'


width 22' 8" x depth 21' 8"

Garage 2:

width 19' 9" x depth 29' 4"

Guest Suite:

width 16' 4" x depth 14'


width 16' x depth 16'


width 11' 6" x depth 12'


width 14' x depth 13'

Master Bedroom:

width 17' x depth 17'

Porch Front:

569 sq/ft

Porch Rear:

1001 sq/ft


width 13' 8" x depth 14' 4"

Sitting Area:

width 11' x depth 14'


width 12' x depth 15' 4"


width 20' x depth 16'

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

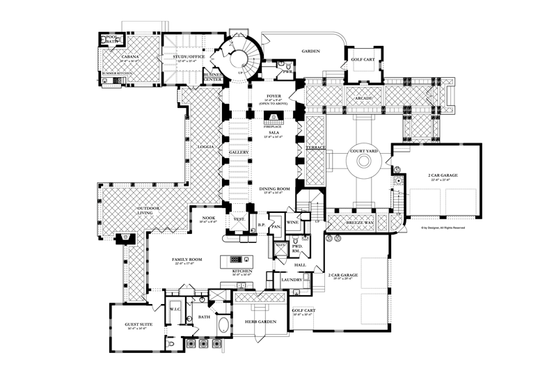

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options

5 Copy Set

5 printed plan sets mailed to you.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options



Insulated Concrete Forms

Insulated Concrete Forms

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
