Plan Description

This classical design floor plan is 9745 sq ft and has 5 bedrooms and 6.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

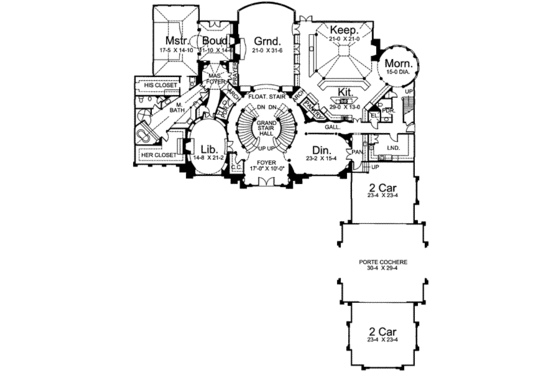

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 6.5

Stories: 2

Garages: 4

Dimension

Depth : 139'

Height : 38'

Width : 112'

Area

Total : 9745 sq/ft

Bonus: 1584 sq/ft

First Floor: 6198 sq/ft height 10'

Second Floor: 3547 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 5:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x4"

Bedroom Features

2 Master Suites

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Loft

Master Sitting Area

Sunroom

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Screened Porch

Rooms

Bedroom 2:

310 sq/ft width 15' 2" x depth 20' 6"

Bedroom 3:

323 sq/ft width 15' 2" x depth 21' 4"

Bedroom 4:

346 sq/ft width 17' 4" x depth 20'

Bedroom 5:

273 sq/ft width 17' 10" x depth 15' 4"

Dining Room:

355 sq/ft width 23' 2" x depth 15' 4"

Foyer:

170 sq/ft width 17' x depth 10'

Garage:

544 sq/ft width 23' 4" x depth 23' 4"

Garage Two:

544 sq/ft width 23' 4" x depth 23' 4"

Grand Salon:

661 sq/ft width 21' x depth 31' 6"

Keeping Room:

441 sq/ft width 21' x depth 21'

Kitchen:

377 sq/ft width 29' x depth 13'

Library - Upper:

310 sq/ft width 14' 8" x depth 21' 2"

Master Bedroom:

255 sq/ft width 17' 3" x depth 14' 10"

Master Foyer:

100 sq/ft width 10' x depth 10'

Port Cochere:

889 sq/ft width 30' 4" x depth 29' 4"

Sky Room:

465 sq/ft width 30' 4" x depth 15' 4"

Wet Bar:

275 sq/ft width 15' 4" x depth 18'

What's included in this plan set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.

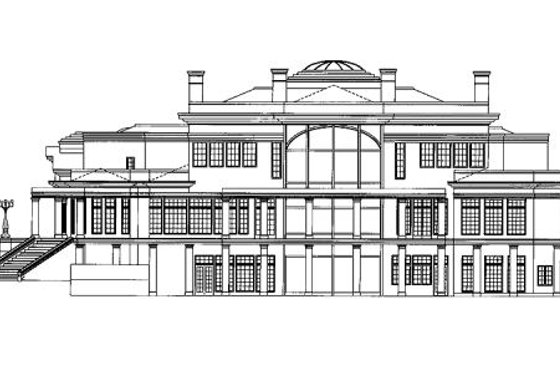

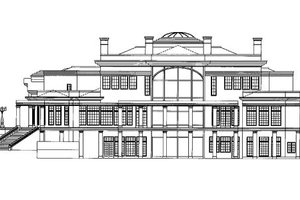

Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
