This exceptional split-foyer home blends a rare mixture of luxury and
economy. Careful design provides extravagant features while remaining a
compact and economical 999 square feet. The dramatic entry is brightened
by the glass door with sidelights and an arched transom. A vaulted
family room, dining room, and kitchen provide a feeling of spaciousness.
The family room is accented with a fireplace, triple window unit, and a
French door leading to the 17 x 11 deck. A breakfast bar and an
abundance of cabinets are highlights of the corridor kitchen. The master
suite has a walk-in closet and large bath with a 5' vanity and garden
tub. A second bedroom and bath complete the main level. On the lower
level along with the garage are the laundry and a future studio. This
300 square foot expansion space may serve as a second master suite or
apartment, and features a kitchenette.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

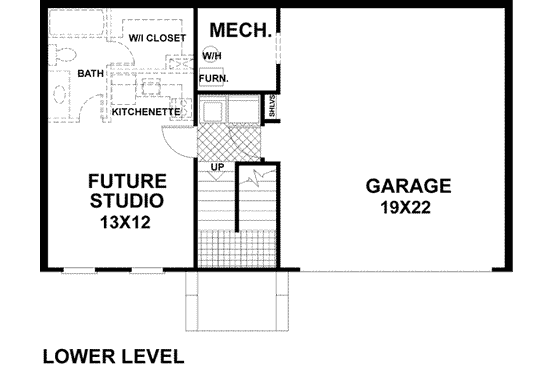

Floor Plan - Lower Floor

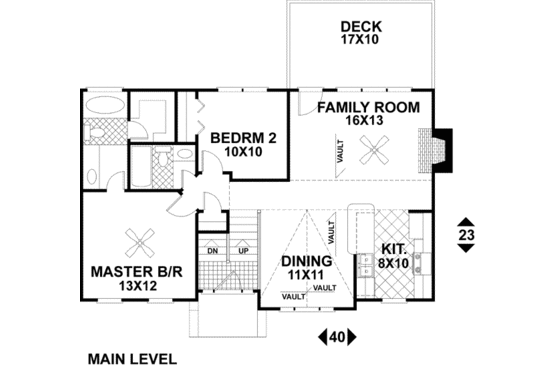

Floor Plan - Main Floor
Full Specs & Features
First Floor: 36 sq/ft height 8'
Second Floor: 963 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Additional Room Features
Family Room Keeping Room
Unfinished Future Space
100 sq/ft width 10' x depth 10'
170 sq/ft width 17' x depth 10'
117 sq/ft width 10' 6" x depth 11' 2"
418 sq/ft width 19' x depth 22'
213 sq/ft width 16' x depth 13' 4"
85 sq/ft width 8' 6" x depth 10'
152 sq/ft width 12' 8" x depth 12'
What's included in this plan set
See a sample plan set
*See important information before purchasing

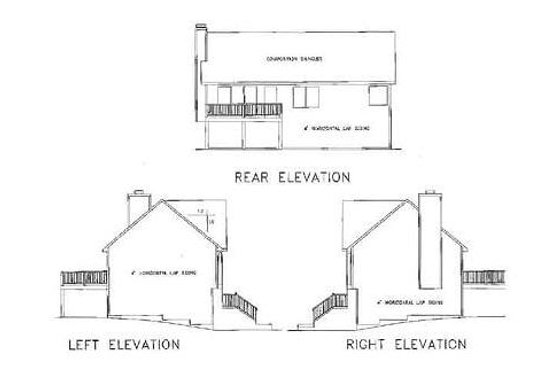

Exterior Elevations: All four sides
