We like the cozy and functional floor plan, which is working pretty hard for such a modest home. There is a generous and appropriate amount of outdoor living space and storage. Well thought out for a small project. - Fine Homebuilding Magazine
This 1025 square feet cottage style 3 bedroom, 2 bath with 0 garage stalls falls in the 1000-2000 square feet range. It also combines elements from the coastal style.
The floor plan features empty-nester, economical to build, covered front porch, suited for narrow lot, main floor master bed & bath, peninsula/eating bar, suited for sloping lot, suited for vacation home, suited for corner lot, energy efficient design.
This plan is also featured in our Editor's Blog, EYE ON DESIGN.
New Katrina Cottages and Bungalows
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

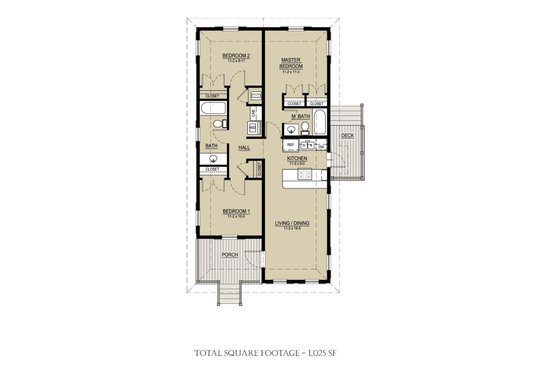

Floor Plan - Main Floor
Full Specs & Features
Decks : 45 sq/ft
Main Floor : 1025 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : gable
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : cement board siding
Framing : Wood
Main Floor Master Bedroom
Suited For Corner Lot
Suited For Narrow Lot
Economical To Build
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

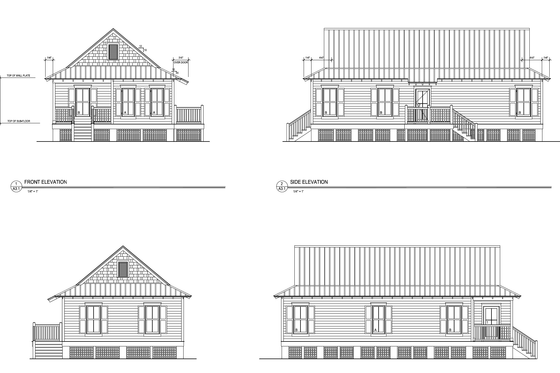

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
5 Copy Set
5 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
*Options with a fee may take time to prepare. Please call to confirm.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
"We believe that the idea of "home" implies more than what is bordered by room dimensions and lot lines. So while we are committed to individual house designs that achieve the highest levels of safety, livability and curb appeal, we want them to perform as building blocks for community, as well." Architect Bruce B. Tolar, P.A. is an architectural, planning and development firm headquartered on the Mississippi Gulf Coast. From our vantage point at the epicenter of coastal growth during the boom years of the 1980s and 1990s and of disaster recovery in the wake of Hurricane Katrina in 2005, we have learned the lessons of quality design from the individual parcel to the neighborhood to the broader community. Many of our techniques were refined during the go-go years of community development on the upper Gulf Coast from Northwest Florida to Louisiana. We learned how to integrate state-of-the-art custom home techniques with state-of-the-art planning for compact, walkable new towns. Those skills were, in turn, applied to the recovery and rebuilding process after Katrina. As partners on the team commissioned by the Mississippi Governor's Commission on recovery planning, we helped shape the Katrina Cottage movement, which proposed alternatives to FEMA trailers that could transition to permanent, storm-worthy homes in new or existing neighborhoods. We took on the role of developers for a model neighborhood of Katrina Cottage designs. That Ocean Springs, Mississippi neighborhood “Cottage Square“ exhibits 14 units in a two-acre cluster, mixing residential and commercial uses and seven design variations ranging from a 200-square-foot studio to a 1,300-square-foot, two story structure we currently use as our office. A winner of innovation awards from both the Congress for the New Urbanism and Cottage Living Magazine, Cottage Square is inspiring an expanding list of new cottage neighborhoods that utilize our designs and site plans, often in combination with design and development partners.
