Plan 118-119

Key Specs

1178
sq ft

0
Beds

0
Baths

2
Floors

2
Garages

Plan Description

The spacious workshop with two window locations is open to the garage which easily accommodates everyone from the hobby enthusiast up to the weekend mechanic. \ \ The second level unfinished storage loft is presently a blank canvas awaiting your personalized transformation into a quaint home office, guest room or exercise room retreat enhanced with a large view dormer and generous window openings at either end.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

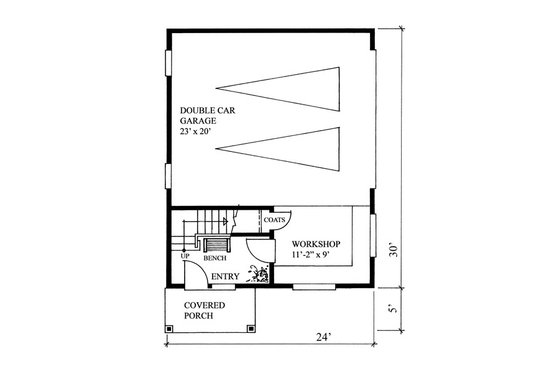

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

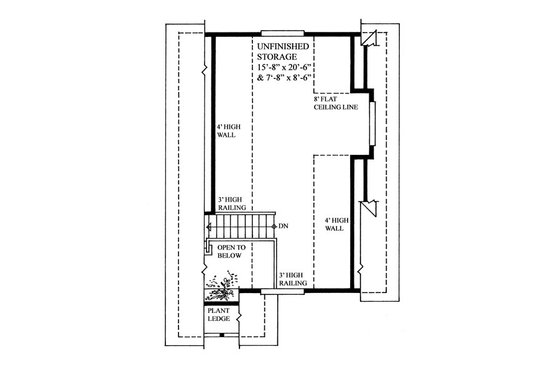

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 0

Baths : 0

Stories: 2

Garages: 2

Dimension

Depth : 35'

Height : 23'

Width : 24'

Area

Total : 1178 sq/ft

Garage : 492 sq/ft

Main Floor : 720 sq/ft

Porch : 50 sq/ft

Storage : 111 sq/ft

Upper Floor : 458 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Loft ceiling slopes from 4' to an 8' flat ceiling. The entry has a two story vaulted ceiling.

Garage Ceiling : 8'

Main Ceiling : 8'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Horizontal Siding

Framing : 2"x6"

Insulation : R-20

Additional Room Features

Loft

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Detached Garage

Garage Under

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Economical To Build

Suited For Vacation Home

Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 2nd Floor Framing

Structural Notes

Structural Roof Framing

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations

Pricing

Plan Options

5 Copy Set

$318.75

5 printed plan sets mailed to you.

PDF Set

Best Value!

$420.75

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.
