Plan 124-510

Photographs may show modified designs.
Plan 124-510

Key Specs


1211
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

Plan Description


Windows fill most of one wall in this A-frame cabin home plan, while the wide deck outside those windows echoes the shape of the roofline. The roomy kitchen faces into a naturally bright, vaulted great room that is open to the ceiling and overlooked by a loft on the upper level.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

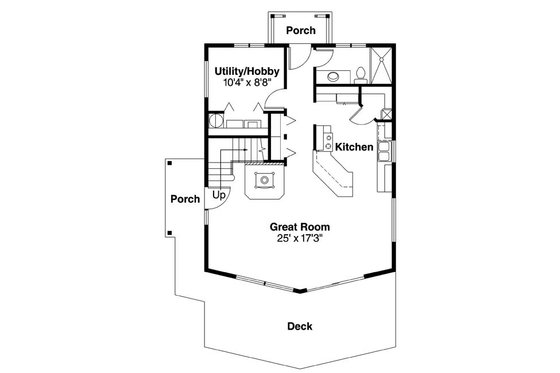

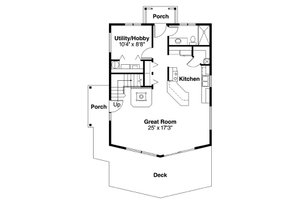

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

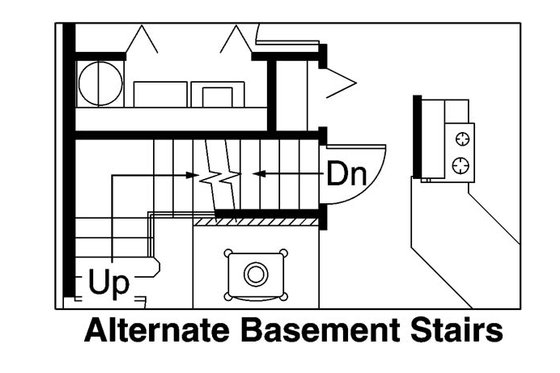

Floor Plan - Other Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 2
Garages: 0

Dimension

Depth : 38'
Height : 24'
Width : 31'

Area

Total : 1211 sq/ft
First Floor: 845 sq/ft
Second Floor: 366 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 25

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony
Grill Deck Sundeck

More

Suited For Vacation Home

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

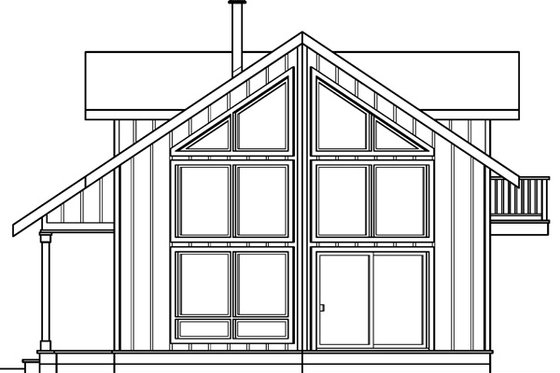

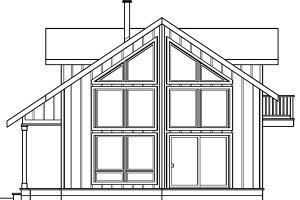

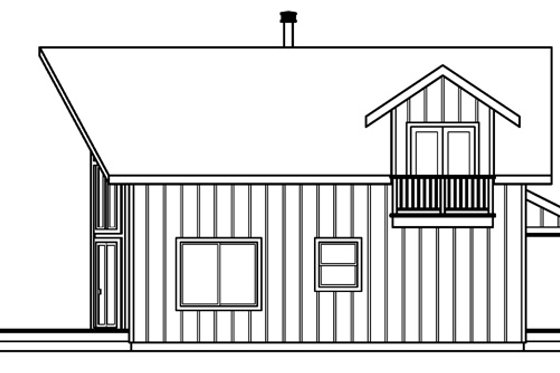

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$845.00
5 printed plan sets mailed to you.

PDF Print Set

$915.00
A non-modifiable, print only PDF file

8 Copy Set

$995.00
8 printed plan sets mailed to you.

CAD Set

$1845.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Master Set

$1890.00
An unlocked, modifiable PDF file

Single Set

$610.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$200.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$285.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
