Plan 47-665

Key Specs


1286
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Plan Description


Create your own cozy getaway chalet with this cabin design. Two levels of outdoor living provide a lovely introduction, with scalloped trim adding to the chalet feel. Step onto the railed veranda and into the open living areas, where a warm fireplace awaits snug evenings to the left and the dining room with a snack-bar counter borders the kitchen on the right. A window above the sink lets you enjoy the scenery while rinsing dishes. One bedroom with a wall closet rests on this level, with use of a full bathroom. The second floor holds two additional bedrooms—one the master suite—and a full bath. In the mornings, greet the trees and mountains from the master suite's balcony that runs the width of the house. Besides plenty of closet space in the bedrooms, additional storage is found up here, coming in handy for stashing heavy winter clothing when not in use. Another storage/mudroom area by the back door is a great place to put wet boots and hang up coats. A sink lets you wash up before entering living areas.


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

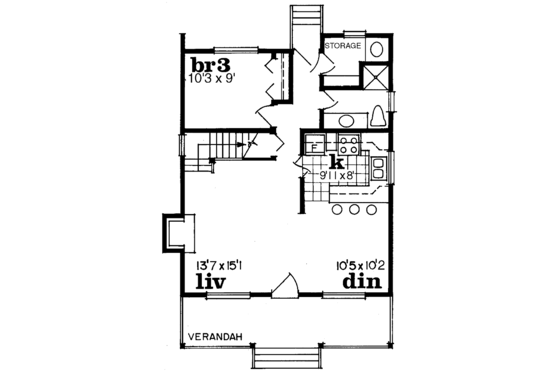

Floor Plan - Main Floor Plan

Reverse

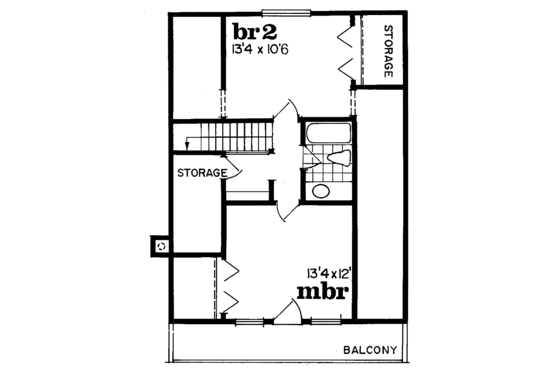

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 0

Dimension

Depth : 36' 6"
Height : 27'
Width : 25'

Area

Total : 1286 sq/ft
First Floor: 725 sq/ft height 8'
Second Floor: 561 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room
Storage Area

Outdoor Spaces

Covered Front Porch
Deck

Rooms

3rd BR Closet:

11 sq/ft width 2' x depth 5' 8"

Bathroom 2:

38 sq/ft width 7' 6" x depth 5' 1"

Bedroom 2:

139 sq/ft width 10' 6" x depth 13' 4"

Bedroom 2 Closet:

35 sq/ft width 4' 10" x depth 7' 4"

Bedroom 3:

92 sq/ft width 10' 3" x depth 9'

Crawlspace Foundation:

750 sq/ft width 30' x depth 25'

Dining Room:

106 sq/ft width 10' 5" x depth 10' 2"

Hall:

29 sq/ft width 3' x depth 9'

Hall Bathroom:

45 sq/ft width 5' 3" x depth 8' 6"

Kitchen:

79 sq/ft width 9' 11" x depth 8'

Living Room:

204 sq/ft width 13' 7" x depth 15' 1"

Master Bedroom:

159 sq/ft width 13' 4" x depth 12'

Master Closet:

31 sq/ft width 4' 10" x depth 6' 6"

Porch - Front:

150 sq/ft width 25' x depth 6'

Storage:

19 sq/ft width 4' 11" x depth 4'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$731.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$836.00
5 printed plan sets mailed to you.

8 Copy Set

$940.50
8 printed plan sets mailed to you.

Reproducible Set

$940.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1463.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$261.25
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$261.25
Ideal for sloping lot, lower level of home partially underground.

Slab

$261.25
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$166.25
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$57.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$332.50
Additional Use License.

Audio Video Design

$95.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$37.05
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$95.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$80.75
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$57.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License

$665.00
Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
