Arched transoms accent the exterior and draw light deep into the
comfortable spaces of this design. We used tall windows across the rear
of the home, where the master suite, great room, and dining room feature
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

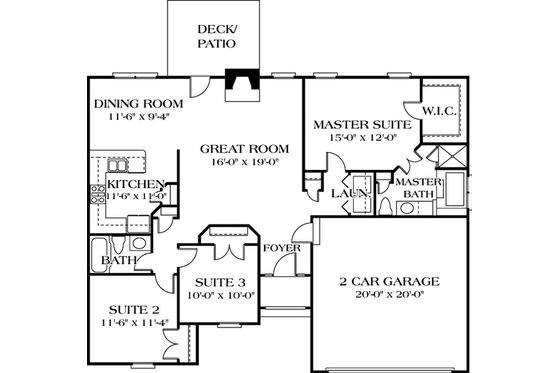

Floor Plan - Main Floor
Full Specs & Features
Basement Unfinished: 1460 sq/ft
First Floor: 1383 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Structural Information Provided
3rd BR Closet:
19 sq/ft width 7' 10" x depth 2' 6"
45 sq/ft width 8' 6" x depth 5' 4"
Bedroom 2 Closet:
14 sq/ft width 2' 8" x depth 5' 4"
Bedroom 3 Closet:
14 sq/ft width 2' 8" x depth 5' 4"
120 sq/ft width 12' x depth 10'
width 0" x depth 5' 4"
413 sq/ft width 20' 8" x depth 20'
5 sq/ft width 2' 6" x depth 2'
19 sq/ft width 3' 4" x depth 6'
119 sq/ft width 12' 4" x depth 9' 8"
55 sq/ft width 6' 4" x depth 8' 10"
Porch - Front:
23 sq/ft width 5' 4" x depth 4' 4"
