Ranch House Plan 21-165 1402 sq ft, 3 bed, 2 bath, 1 floor, 2 garage

Name: Ranch Style House Plan - 3 Beds 2 Baths 1402 Sq/Ft Plan #21-165
Brand: Houseplans.com
SKU: 21-165
Price: 1200.00 USD
Availability: InStock

Key Specs

1402
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$150.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$60.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$150.00
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$50.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1200.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

$4.99 with Code
CTB2025 (Limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Ranch

Ranch House Plan 21-165 1402 sq ft, 3 bed, 2 bath, 1 floor, 2 garage

Key Specs

1402
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description

The Pine Creek provides a great use of space, innovative features, and the most-popular split bedroom floorplan. This home features an expansive great room which opens directly into your dining room/breakfast area. Enjoy the large kitchen and raised bar....perfect for entertaining or for those daily family meals. From the dining, go out any enjoy the large patio which can be easily built as covered or left open to enjoy the great outdoors. Looking for storage space? This home features a coat closet, broom closet, utility room, garage storage, and large bedroom closets. Come home to The Pine Creek today!

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

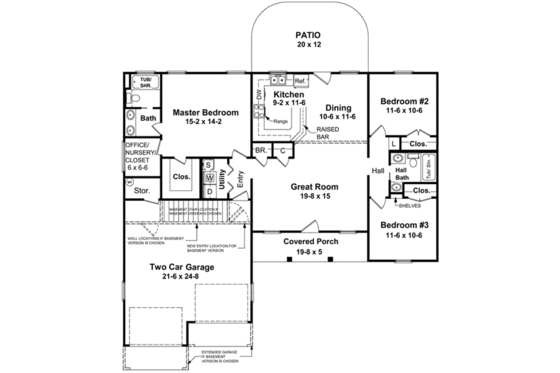

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

LEARN MORE

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 2

Dimension

Depth : 47'

Height : 20'

Width : 54'

Area

Total : 1402 sq/ft

Basement Unfinished: 1513 sq/ft

First Floor: 1402 sq/ft

Garage: 509 sq/ft

Storage: 24 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Gable

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x4"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Storage Area

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

120 sq/ft width 11' 6" x depth 10' 6"

Bedroom 3:

120 sq/ft width 11' 6" x depth 10' 6"

Covered Porch:

98 sq/ft width 19' 8" x depth 5'

Dining Room:

120 sq/ft width 10' 6" x depth 11' 6"

Garage:

530 sq/ft width 21' 6" x depth 24' 8"

Great Room:

295 sq/ft width 19' 8" x depth 15'

Kitchen:

105 sq/ft width 9' 2" x depth 11' 6"

Master Bedroom:

214 sq/ft width 15' 2" x depth 14' 2"

Office:

39 sq/ft width 6' x depth 6' 6"

Patio:

240 sq/ft width 20' x depth 12'

What's included in this plan set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Showing architectural rendering of residence
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Overhead Roof Plan(s): Each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Electrical Plan(s): In general, shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Pricing

Plan Options

PDF Set

Best Value!

$1200.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1300.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$1500.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1850.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1050.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$150.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$150.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$50.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
