Walking through the foyer, you'll enter the spacious great room with fireplace. A convenient bar located in the kitchen makes snack time a breeze. If you're hosting a dinner party, the open dining room with fluid access to the kitchen makes entertaining your guests easy. When night falls, retire to your master suite bathroom, which comes complete with double vanities, whirlpool tub and glass shower. Bedrooms two and three feature individual walk-in closets. Comments: 8 ft ceilings Great room with 9 boxed ceiling and fireplace Dining Room overlooks Kitchen with eat-in bar Master suite 9 pan ceiling Master bath whirlpool tub, separate glass shower, double vanities and large walk-in closet Bedroom 2 with vaulted ceiling Roof Framing: 2x6 Insulation Exterior Walls: R-13 Ceiling Minimum: R-30 Floor Minimum: R-19 Roof Designed Roof Load: 45-lbs. Psf lbs. psf Roof Pitch - Main: 8:12 Roof Pitch - Front Gable: Roof Framing Description: Conventional Roof Type: Shingle See 17-118 for Basement Version
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

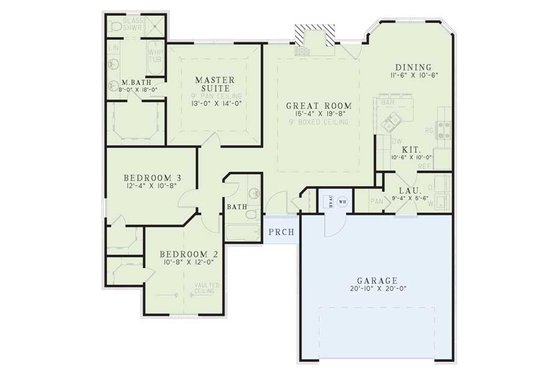

Floor Plan - Main Floor Plan
Full Specs & Features
Depth : 48' 4"
Height : 18'
First Floor: 1461 sq/ft height 8'
Garage: 417 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch:
What's included in this plan set
See a sample plan set
*See important information before purchasing
Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

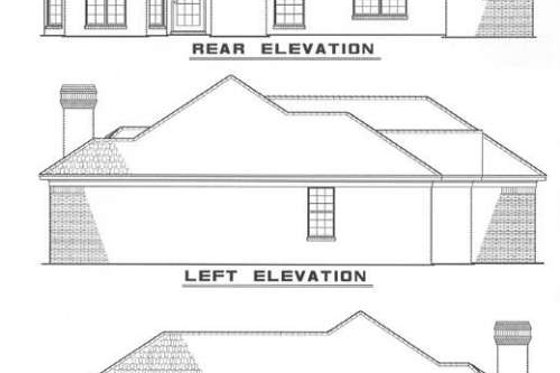

Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
