Charming shingle gable ends and clean double posts welcome you to the cottage style Westcliff home design. To the right of the entry is a set of double doors that open to a den which could also be used as a bedroom if needed. Walking past the den, you enter the living room with a tray ceiling. Living room, dining room and kitchen flow together seamlessly with the only separation coming from the peninsular eating bar in the kitchen. Along the back of the house is a hall that provides access through the sliding door to a covered area on the patio. On the end of the hall is another bedroom and the owners' suite that features a step-in closet and private bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

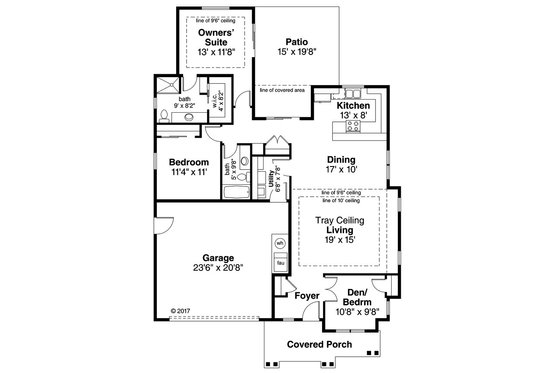

Floor Plan - Main Floor
Full Specs & Features
Depth : 64'
Height : 23' 4"
Garage : 482 sq/ft
Main Floor : 1489 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7/12
Roof Framing : Truss/Stick
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle
Framing : 2x6
Main Floor Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Covered Front Porch
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

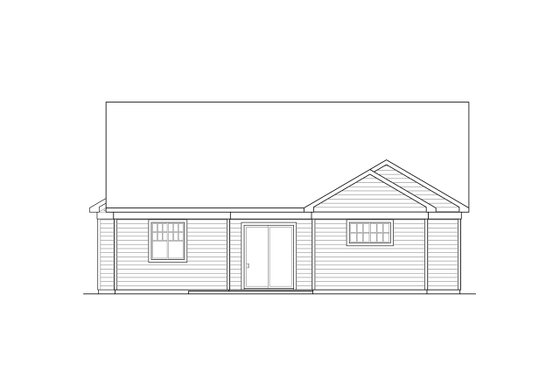

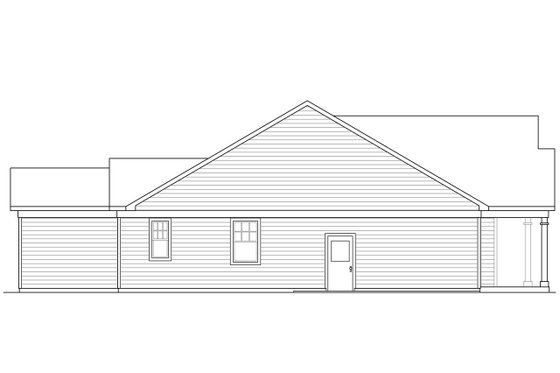

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
