Traditional in style but high on detail, this 1680 square foot ranch home will blend easily into any neighborhood. With two bedrooms and a den, this home will please many buyers with families who also need an at-home work environment. The open floor plan includes a kitchen with a central island that has direct access to the adjacent great and dining rooms, and a screened porch is accessed through patio doors off the back of the home. The master suite pleases with a tray ceiling, walk-in closet and direct laundry access. A two-stall garage completes this plan.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

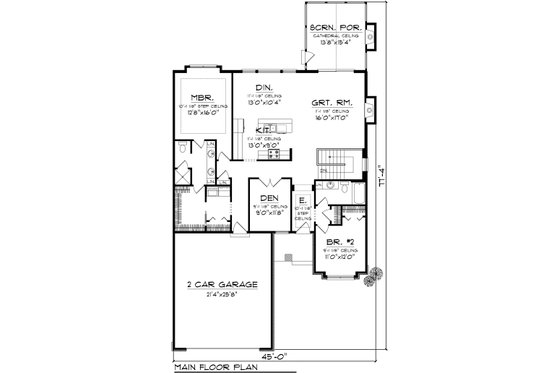

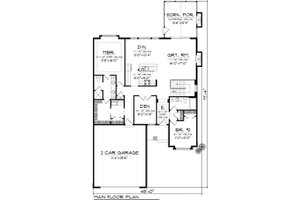

Floor Plan - Main Floor
Full Specs & Features
Depth : 77' 4"
Height : 20'
First Floor: 1680 sq/ft
Garage: 572 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : 9'. Din Rm/Kitchen/Grt Rm Vaulted, Master Bdrm/Entry 10' Step, Bdrm #2 Cathedral
Lower Ceiling : 9'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone
Framing : 2x6
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
width 11' x depth 12'
width 9' x depth 11' 8"
width 13' x depth 10' 4"
572 sq/ft width 21' 4" x depth 25' 8"
width 16' x depth 17'
width 13' x depth 9'
width 12' 8" x depth 16'
width 13' 8" x depth 15' 4"
What's included in this plan set
See a sample plan set
*See important information before purchasing
Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Schematic electrical plans with suggested switch, outlet, and light fixture locations
General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
