With its sleek exterior, combining horizontal siding and lightweight stone siding, this Modern Transitional house plan contains full utilities such as an enclosed vestibule with coat closet and a bench. It also offers a beautiful home office space that some will use as a playroom for children, a media room or simply as bedroom #4. In addition, the back of the house proposes an open kitchen, dining and living floor plan concept, abundantly windowed offering lots of natural lights. The kitchen boosts a good size kitchen island for 4 to 5 people. A laundry room & half bath complete that main floor of this beautiful and affordable transitional home plan. Upstairs, there are 3 good size bedrooms. The master bedrooms has a 8ft. x 4ft. walk-in closet and a sitting area. The large family bathroom has a semi-private toilet area, a make-up counter, adouble vanity, a freestanding bathtub, a large shower 42in x 66in, and a very convenient laundry chute.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

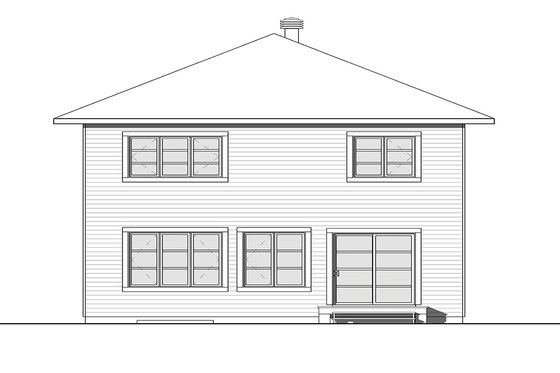

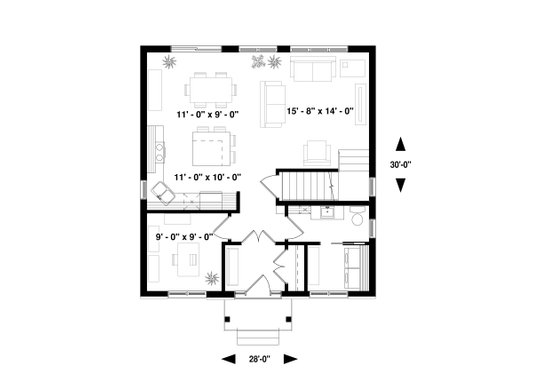

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 30'
Height : 27' 2"
Main Floor : 840 sq/ft
Upper Floor : 840 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 6:12
Roof Framing : Truss
