Plan 17-2491

Photographs may show modified designs.
Plan 17-2491

Plan Description


The split bedroom open floor plan boasts a large Great Room featuring a fireplace flanked by built-in shelves and access to a huge Grilling Porch. The Great Room is also open to the kitchen which has a prep island and an eat-at island bar, perfect for buffet style meals, and a walk-in pantry. The Master Suite also has access to the Grilling Porch while the bathroom offers a large corner shower with seats, a corner whirlpool tub and a huge walk-in closet that has convenient access to the very spacious laundry room. And you can feel secure with the Safe Room that?s off the laundry room. Bedrooms 2 and 3 are on the opposite side of the home and each have walk-in closets and share a bathroom. The study or office is located off of the Great Room and has a nice sized walk-in closet. And last but not least is the massive optional Game Room upstairs. It contains another full bathroom and a walk-in closet.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

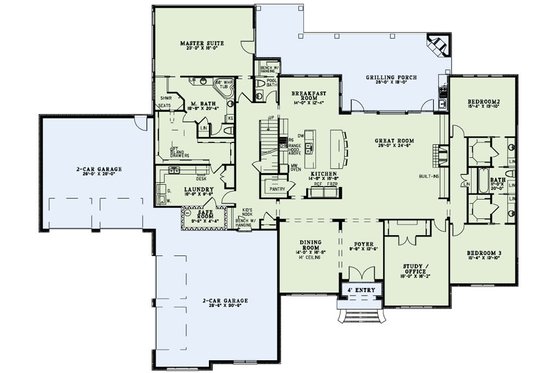

Floor Plan - Main Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 1
Garages: 4

Dimension

Depth : 85'
Height : 37'
Width : 111' 8"

Area

Total : 4076 sq/ft
Bonus: 947 sq/ft
First Floor: 4076 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'
Main Ceiling : 10'

Roof

Primary Pitch : 12:12
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room

Garage Features

Side Entry Garage
Split Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

Rooms

Bath 2:

width 11' x depth 20'

Bedroom 2:

width 15' 4" x depth 13' 10"

Bedroom 3:

width 15' 4" x depth 13' 10"

Breakfast Room:

width 14' x depth 12' 4"

Dining Room:

width 14' x depth 16' 8"

Foyer:

width 9' 8" x depth 13' 6"

Great Room:

width 25' x depth 24' 6"

Kitchen:

width 14' 6" x depth 15' 8"

Laundry Room:

width 18' 6" x depth 9' 6"

Master Bath:

width 18' 6" x depth 20' 4"

Master Suite:

width 23' x depth 16'

Safe Room:

width 9' 6" x depth 4' 4"

Study/Office:

width 16' x depth 16' 2"

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1850.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1950.00
5 printed plan sets mailed to you.

5 Copy and PDF Set

$2200.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$3700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$299.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$299.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$299.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
