Plan 70-1164

Photographs may show modified designs.
Plan 70-1164

Plan Description

This craftsman ranch is abundant in size and impressive in detail. Massive columns define a spacious front porch while barn door-style garage doors, stone and shingle siding all complement each other to create maximum curb appeal. Inside, an open concept floor plan design takes advantage of every inch of living space. The kitchen features an island with eating area that overlooks the dining room and nook to the back of the home. The living room lies adjacent and includes a step ceiling and a wall of windows that provide plenty of natural light to the living space. The master suite lies to the right of the home and includes a walk-in closet and dual sinks. The second bedroom lies to the front of the home just to the right of the entry. A two-stall garage completes this home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

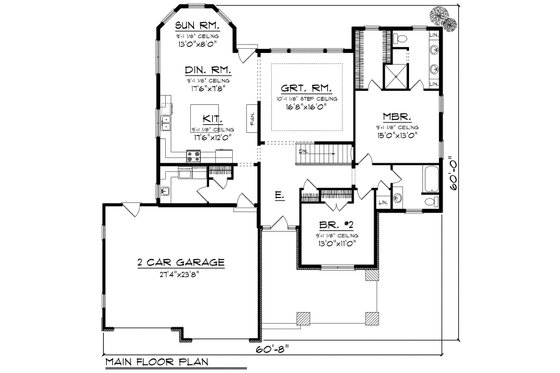

Floor Plan - Main Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 2
Baths : 2
Stories: 1
Garages: 2


Depth : 60'
Height : 22' 9"
Width : 60' 8"


Total : 1783 sq/ft
First Floor: 1783 sq/ft
Garage: 645 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Grt Rm 10' Step
Lower Ceiling : 8'
Main Ceiling : 9'


Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Screened Porch


Bedroom 2:

width 13' x depth 11'

Bedroom 2 Closet:

width 5' 7" x depth 2' 1"

Covered Front Porch:

width 21' x depth 17'

Dining Area:

width 17' 6" x depth 7' 8"


width 7' x depth 6' 9"


645 sq/ft width 27' 4" x depth 23' 8"

Great Room:

width 16' 8" x depth 16'


width 16' 4" x depth 4' 2"

Hall Bath:

width 8' 4" x depth 7' 11"

Hall Closet 1:

width 4' 1" x depth 2' 1"

Hall Closet 2:

width 3' 2" x depth 2' 1"


width 17' 6" x depth 12'

Laundry Room:

width 8' 5" x depth 6' 9"

Master Closet:

width 6' 4" x depth 10' 6"

Master Bath:

width 8' 4" x depth 10' 6"

Master Bedroom:

width 15' x depth 13'

Sun Room:

width 13' x depth 8'

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing


Plan Options

5 Copy Set

5 printed plan sets mailed to you.

8 Copy Set

8 printed plan sets mailed to you.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for level lot, lower level of home partially or fully underground.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
