This is a great open plan with split-bedroom layout. The master suite
has a trayed ceiling, large closet for him and her, jet tub, over-sized
shower, and large vanity next to her closet. Enjoy the vaulted ceiling,
gas logs, and built-ins in the great room. All bedrooms feature walk-in
closets with their own private bath. Note that Bedroom 2 could be used
as an "In-law suite". A "Flex Space" is provided for uses such as an
office/media center/half bath/hobby room/or winter-wear closet. The
kitchen is large with an over-sized bar. The plan has a covered front
porch, screen porch, and patio for small groups to gather. Garage is
nearly 26 feet deep to provide more space than is normal for parking and
open storage. This house is sized right to fulfill the needs of new
couples, families with children, and empty-nesters that may need to take
care of an elderly family member. A very versatile plan and easy to
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

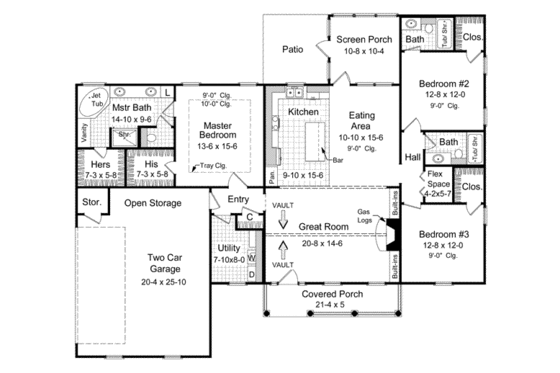

Floor Plan - Main Floor
Full Specs & Features
Garage : 523 sq/ft
Main Floor : 1800 sq/ft
Porch : 224 sq/ft
Storage : 22 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Type : Gable
Walk In Closet
Additional Room Features
Great Room Living Room
Covered Front Porch
