Plan 70-1191

Photographs may show modified designs.
Plan 70-1191

Key Specs


1807
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


• Modern details of stone, shutters, stone sills and columns update this traditional ranch design for modern tastes. • The vaulted entry leads to an open-concept living space where a unique breakfast bar overlooks the space. • The ceiling vaults over the entire living space creating extra volume in the area. • The three bedrooms lie to the left of the entry and include a master suite with spacious walk-in closet and step ceilings in the bedroom. • A screen porch is tucked behind the side-load two-stall garage with access to a porch that wraps the entire back end of the home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

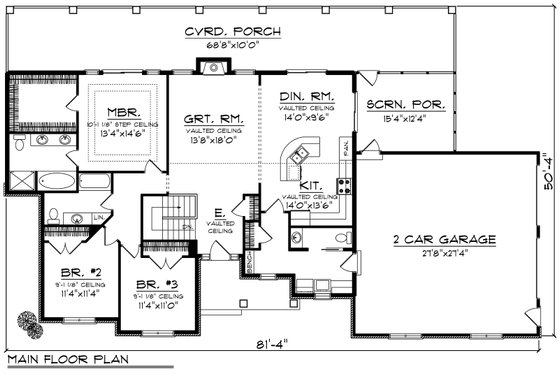

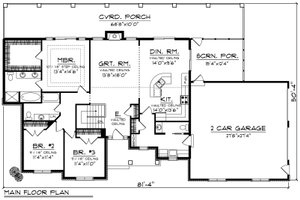

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 50' 4"
Height : 25' 4"
Width : 81' 4"

Area

Total : 1807 sq/ft
First Floor: 1807 sq/ft height 9' 1"
Garage: 786 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry/Grt Rm/Kitch/ Din Rm Vaulted, Master Bdrm 10' Step
Lower Ceiling : 8'
Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Sunroom
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch

Rooms

Bedroom 2:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 2 Closet:

14 sq/ft width 7' x depth 2'

Bedroom 3:

125 sq/ft width 11' 4" x depth 11'

Bedroom 3 Closet:

14 sq/ft width 7' x depth 2'

Covered Front Porch:

103 sq/ft width 13' 8" x depth 7' 6"

Covered Rear Porch:

687 sq/ft width 68' 8" x depth 10'

Dining Area:

133 sq/ft width 14' x depth 9' 6"

Foyer:

63 sq/ft width 7' x depth 9'

Garage:

786 sq/ft width 27' 8" x depth 27' 4"

Great Room:

246 sq/ft width 13' 8" x depth 18'

Half Bath:

80 sq/ft width 10' x depth 8'

Hall 1:

24 sq/ft width 3' x depth 8'

Hall 2:

29 sq/ft width 4' x depth 7' 4"

Hall Closet 1:

8 sq/ft width 2' x depth 4'

Hall Closet 2:

7 sq/ft width 2' x depth 3' 8"

Kitchen:

189 sq/ft width 14' x depth 13' 6"

Laundry:

56 sq/ft width 8' 8" x depth 6' 6"

Linen Closet:

4 sq/ft width 2' 8" x depth 1' 8"

Master Bath:

90 sq/ft width 10' 4" x depth 8' 8"

Master Bedroom:

193 sq/ft width 13' 4" x depth 14' 6"

Master Closet:

90 sq/ft width 10' 4" x depth 8' 8"

Mud Room:

69 sq/ft width 7' 8" x depth 9'

Powder Room:

29 sq/ft width 9' 6" x depth 3'

Screened Porch:

189 sq/ft width 15' 4" x depth 12' 4"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$930.00
5 printed plan sets mailed to you.

8 Copy Set

$980.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1165.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1165.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1850.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$295.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
