Plan 70-1478

Photographs may show modified designs.
Plan 70-1478

Key Specs


1871
sq ft

2
Beds

2
Baths

2
Floors

3
Garages

Plan Description


The straightforward footprint of this home makes it simple to build, while the layout inside showcases plenty of modern must-haves. Lockers and a bench keep things tidy on the way in from the three-car garage. In the kitchen, an island adds prep space and overlooks the vaulted great room. A bedroom down here holds visitors or an office, while the spacious master bedroom (take a look at that huge closet) rests on the upper level along with a large loft.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

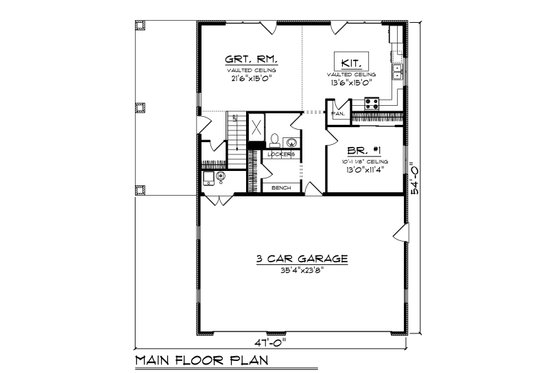

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 2
Garages: 3

Dimension

Depth : 54'
Height : 27' 4"
Width : 47'

Area

Total : 1871 sq/ft
Garage : 864 sq/ft
Main Floor : 1080 sq/ft
Porch : 337 sq/ft
Upper Floor : 791 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted Living Room & Kitchen
Main Ceiling : 10'

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Siding
Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Loft
Mud Room
Storage Area
Upstairs Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Narrow Lot

Rooms

Bedroom 1:

width 13' x depth 11' 4"

Bedroom 2:

width 15' x depth 14'

Garage:

width 35' 4" x depth 23' 8"

Great Room:

width 21' 6" x depth 15'

Kitchen:

width 13' 6" x depth 15'

Loft:

width 18' 8" x depth 17' 8"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$930.00
5 printed plan sets mailed to you.

8 Copy Set

$980.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1165.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1165.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1850.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$295.00
Ideal for level lot, lower level of home partially or fully underground.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
