Plan 120-187

Photographs may show modified designs.
Plan 120-187

Key Specs


1879
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


A wraparound porch gives a sheltered entry and creates a cozy place to spend summer evenings, with enough room on the side to accommodate a porch swing. Off the foyer, a unique study opens with two sets of French doors to the porch on one side and the foyer on another. Two more sets of French doors lead from the large family room to the rear lanai. The master suite offers dual closets and sinks, a garden tub, a walk-in shower, and yes, more French doors to the rear lanai. The plan has an option for a basement with stairs adjacent to the utility room. This area could be storage or a half bath with a slab or crawlspace foundation.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

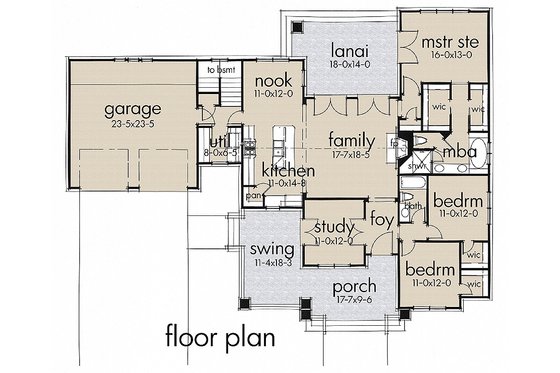

Floor Plan - Main Floor Plan

Reverse
Craftsman house pan 1900sft by Texas Architect David Wiggins

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 57' 11"
Height : 24' 11"
Width : 78' 11"

Area

Total : 1879 sq/ft
Garage : 573 sq/ft
Main Floor : 1879 sq/ft
Porch : 644 sq/ft
Storage : 58 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Family Room: 11' - Utility Room, Bath 2, and Garage: 9'
Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Stick
Roof Load : 20
Roof Type : Shingle
Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2x4
Insulation : R-15

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

What's included in this plan set


See a sample plan set
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$995.00
5 printed plan sets mailed to you.

8 Copy Set

$1145.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1245.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1245.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$795.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$200.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$300.00
Ideal for level lot, lower level of home partially or fully underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$190.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
