Plan 519-1

Photographs may show modified designs.
Plan 519-1

Key Specs


1937
sq ft

4
Beds

2.5
Baths

2
Floors

1
Garages

Plan Description


Sloping lots often have a view and this plan takes advantage of that fact by placing the main living areas on the second level. Open spaces, flexible sleeping accommodations, large windows and doors for cross breezes and access to the outdoors all add up to a getaway house that encourages its occupants to enjoy their surroundings and each other.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

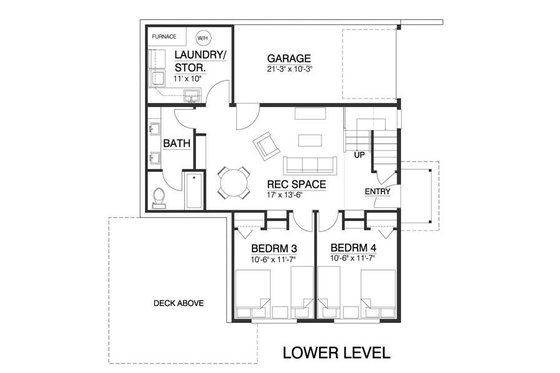

Floor Plan - Lower Floor Plan

Reverse
Contemporary Floor Plan - Lower Floor Plan Plan #519-1

Floor Plan - Main Floor Plan

Reverse
Contemporary Floor Plan - Main Floor Plan Plan #519-1

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 2
Garages: 1

Dimension

Depth : 40'
Height : 26'
Width : 34'

Area

Total : 1937 sq/ft
Decks : 314 sq/ft
Garage : 218 sq/ft
Lower Floor : 857 sq/ft
Main Floor : 1080 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Great Room ceiling ht. 12'Kitchen/dining slopes from 10'6" to 9'
Garage Ceiling : 9'
Lower Ceiling : 9'
Main Ceiling : 10'

Roof

Primary Pitch : 3:12
Roof Framing : Truss
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : cement board siding
Framing : 2"x6"
Insulation : 21

Bedroom Features

2 Master Suites
Upstairs Master Bedrooms

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Storage Area

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

More

Economical To Build
Suited For Vacation Home

Structural Information Provided

Foundation Drawing
Structural 2nd Floor Framing

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

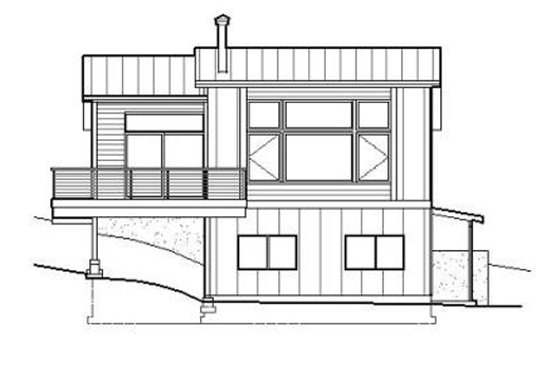

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
