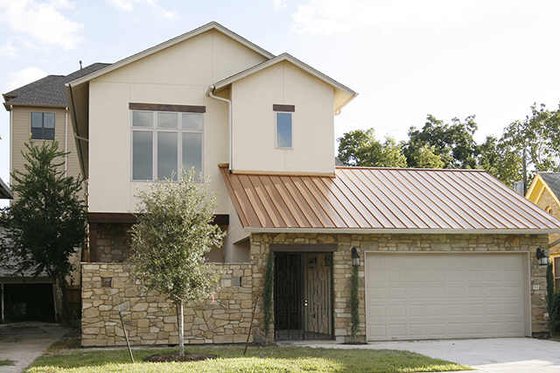

This narrow lot courtyard plan has an open modern floor plan with a more
traditional, northern California inspired exterior. The living areas and

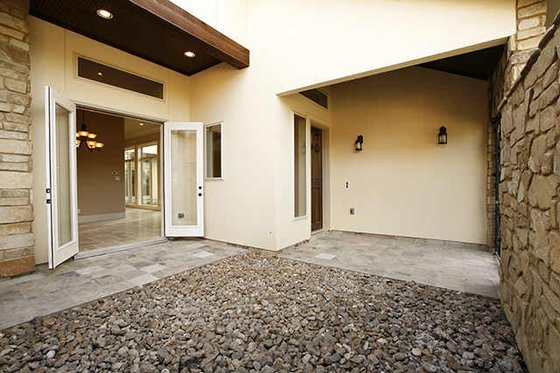

first floor master bedroom are flooded with natural light from expansive

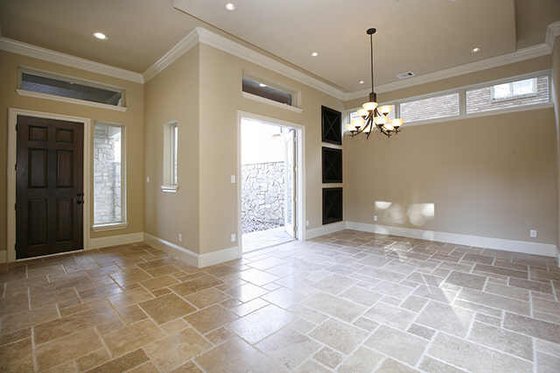

windows and doors opening onto the courtyard. The dining room features
its own covered porch and private dining terrace.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

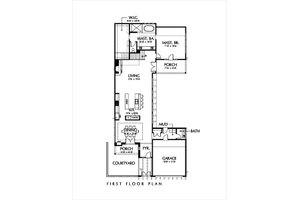

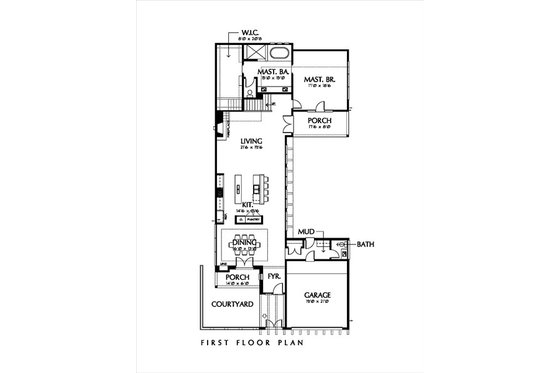

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Garage : 425 sq/ft
Main Floor : 2206 sq/ft
Porch : 448 sq/ft
Upper Floor : 1722 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 10'
Main Ceiling : 12'
Primary Pitch : 6:12
Roof Type : Asphalt shingle / Metal
Exterior Wall Framing
Exterior Wall Finish : Stucco / Cultured stone
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath
Suited For Vacation Home
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
