This home offers a very functional split floor plan layout. The
great room features 12-foot ceilings, cozy fireplace with gas logs, and
welcoming transoms above the windows. Excellent views of the great room
and back yard from kitchen. The expansive and well-appointed master
suite includes a large walk-in closet, an oversized jet tub, separate
shower, compartmentalized toilet and dual vanities. Other key features
of the home include a home office, large utility room, and a large 2 car
garage. The optional bonus room provides an excellent space for a
playroom and even has room for an extra bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

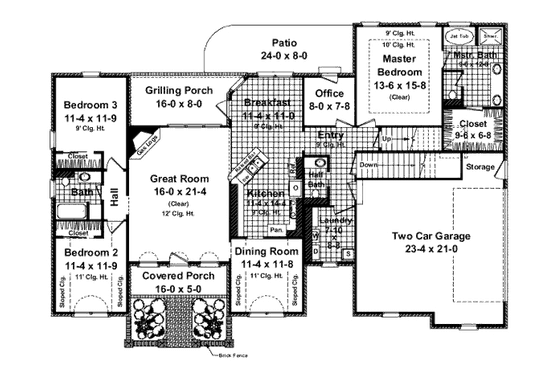

Floor Plan - Main Floor

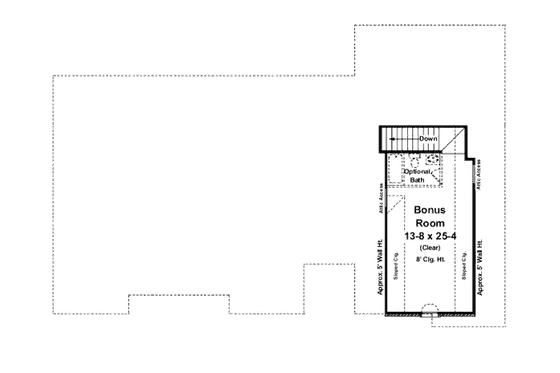

Floor Plan - Other Floor
Full Specs & Features
Bonus : 385 sq/ft
Garage : 672 sq/ft
Main Floor : 1955 sq/ft
Porch : 213 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Type : Hip / Gable
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Covered Front Porch
Covered Rear Porch
