• This contemporary ranch features a pop-up roof directly above the entry to create a lasting impression as you enter. • Double doors draw you into the home where a spacious great room with a bank of windows overlooks a covered porch off the back of the home. • The kitchen lies adjacent to the great room and flows directly into the dining room. • The split bedrooms position the master behind the garage and the second bedroom to the front and right of the entry. • A step ceiling, dual sinks, walk-in closet and pass through to the laundry makes the master suite a luxury for mom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

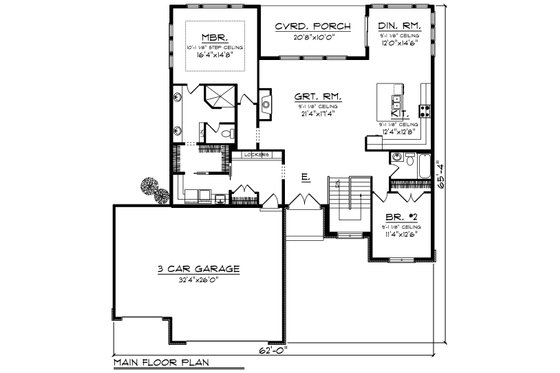

Floor Plan - Main Floor
Full Specs & Features
Depth : 65' 4"
Height : 18' 6"
Garage : 821 sq/ft
Main Floor : 1959 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : MBR 10' Step.
Lower Ceiling : 9'
Primary Pitch : 5:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Stucco. Stone. Horizontal Siding.
Framing : 2x6
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Schematic electrical plans with suggested switch, outlet, and light fixture locations
General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
