Plan 70-617

Photographs may show modified designs.
Plan 70-617

Key Specs


1961
sq ft

2
Beds

2.5
Baths

1
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

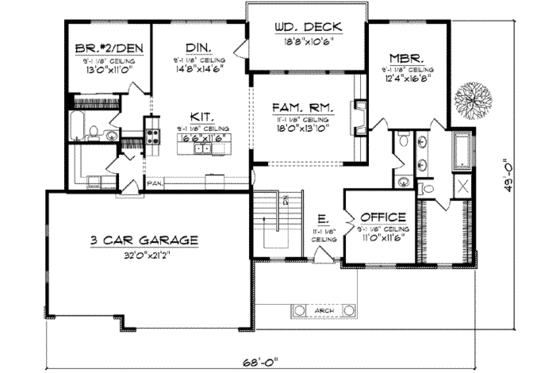

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2.5
Stories: 1
Garages: 3

Dimension

Depth : 49'
Height : 26'
Width : 68'

Area

Total : 1961 sq/ft
First Floor: 1961 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x6"

Bedroom Features

Walk In Closet

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Unfinished Future Space

Garage Features

Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch

More

Empty Nester

Rooms

Basement Foundation:

2556 sq/ft width 65' x depth 39' 4"

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 2 Closet:

14 sq/ft width 7' 2" x depth 2'

Bedroom 3 Closet:

14 sq/ft width 7' 2" x depth 2'

Deck:

196 sq/ft width 18' 8" x depth 10' 6"

Dining Room:

212 sq/ft width 14' 8" x depth 14' 6"

Foyer:

67 sq/ft width 6' 4" x depth 10' 8"

Garage:

677 sq/ft width 32' x depth 21' 2"

Gathering Room:

248 sq/ft width 18' x depth 13' 10"

Hall Bathroom:

40 sq/ft width 8' x depth 5'

Hall Closet:

7 sq/ft width 3' 6" x depth 2'

Kitchen:

189 sq/ft width 16' 6" x depth 11' 6"

Laundry Room:

54 sq/ft width 7' 8" x depth 7' 2"

Master Bathroom:

93 sq/ft width 8' 8" x depth 10' 10"

Master Bedroom:

205 sq/ft width 12' 4" x depth 16' 8"

Master Closet:

86 sq/ft width 8' 8" x depth 10'

Office:

126 sq/ft width 11' x depth 11' 6"

Porch - Front:

108 sq/ft width 16' 4" x depth 6' 8"

Powder Room:

27 sq/ft width 3' x depth 9' 2"

Slab Foundation:

729 sq/ft width 32' 8" x depth 22' 4"

What's included in this plan set


See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale

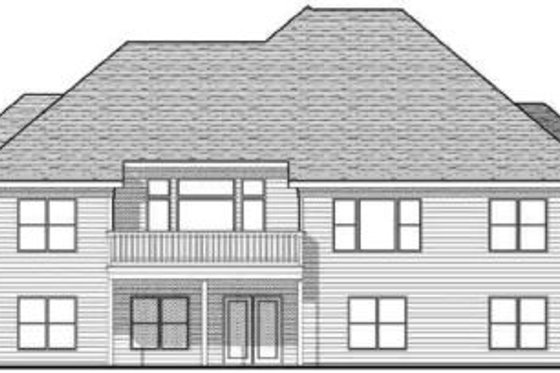

  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$930.00
5 printed plan sets mailed to you.

8 Copy Set

$980.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1165.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1165.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1850.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Crawlspace

$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$295.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
