This bungalow style garage plan can house up to 5 cars. The larger two
car door is 16' wide and 8' tall, while the smaller door is 9' wide and
8' tall. This garage plan also has a guest apartment on the second
floor. The guest apartment features a walk-in closet with full bathroom
in the bedroom. As well as a fireplace in the great room that can be
enjoyed from the kitchen and nook. There is also a utility room that is
accessed through the kitchen.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Main Floor

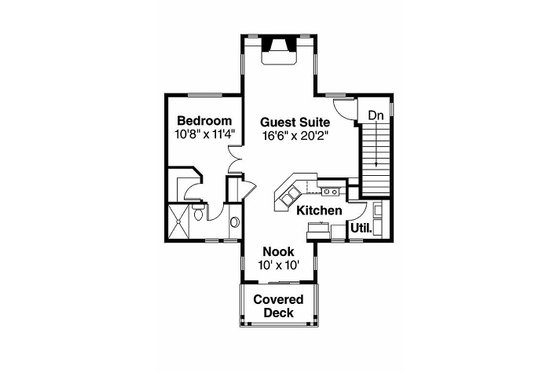

Floor Plan - Upper Floor
Full Specs & Features
Garage: 1200 sq/ft height 9'
Second Floor: 799 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Shingle/Brick
Framing : 2"x6"
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
120 sq/ft width 10' 8" x depth 11' 4"
1000 sq/ft width 34' 6" x depth 29'
332 sq/ft width 16' 6" x depth 20' 2"
100 sq/ft width 10' x depth 10'
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

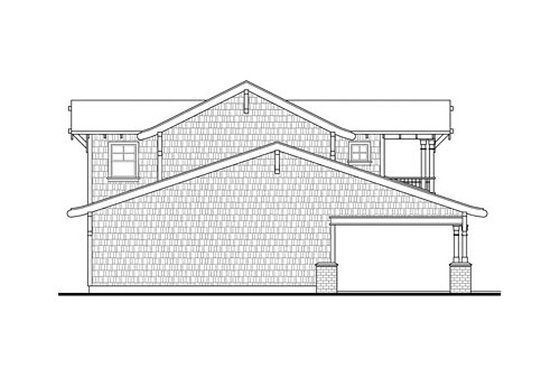

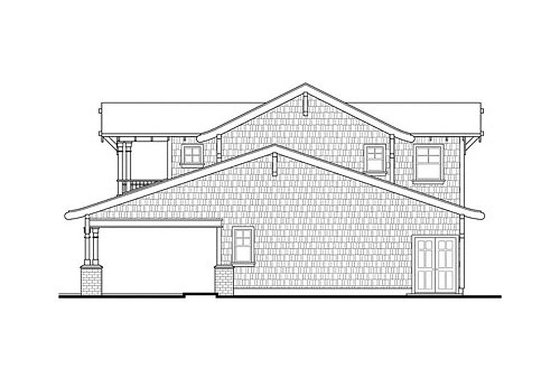

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
PDF Print Set
A non-modifiable, print only PDF file
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Master Set
An unlocked, modifiable PDF file
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Master Builder Package
Includes CAD Set, PDF Masters and Unlimited Build License
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
Additional Use License.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
