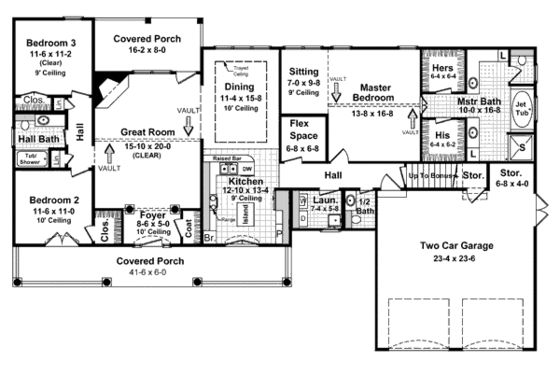

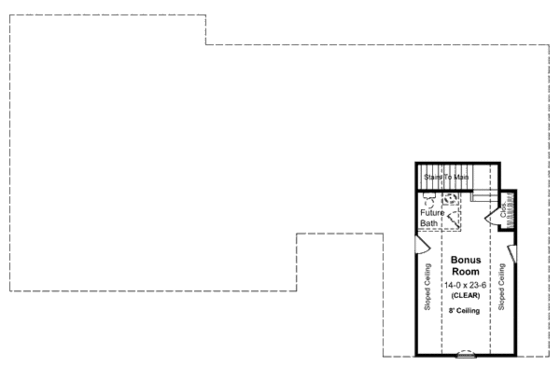

This houseplan includes a variety of popular features including: an open floorplan with split-bedroom layout; expansive master suite wih vaulted ceiling in the master bedroom, a sitting area, large his and her walk-in closets, oversized jet tub, 4' x 4' shower, and plenty of counter space. Great room features vaulted ceiling, includes fireplace, and plenty of light. Kitchen includes a raised bar and an island. Large dining room featuring raised-ceiling and great views into the backyard. The versatility of this plan is further enhanced by a "Flex Space" on the first floor and a "Bonus Room" over the garage. Garage is oversized for full-sized vehicles. Half bath is conveniently located for guests..
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Cover Sheet: Showing architectural rendering of residence
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
Foundation Plan and Details
Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

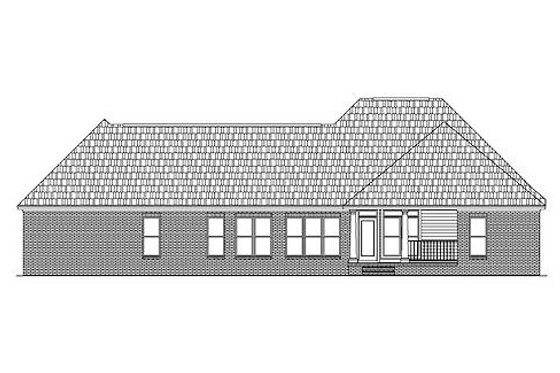

Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
