This rambling ranch home embodies the true definition of a craftsman style with its gable roof line and large porch graced with columns from end to end. Inside, you’ll find a barrel vault in the entry with columns that define the formal dining room to your right. The main living area lies directly ahead and beckons you forward with dual doors out the great room, a bay window in the nook, and fireplace with built-in bookshelves on either side. The well-appointed kitchen includes a breakfast bar that overlooks both the nook and great room to create the open plan. The master suite impresses with a tray ceiling, his and hers walk-in closets and a Jacuzzi tub. Two additional bedrooms lie on the opposite side of the home, each with walk-in closet and access to the full bath off the hall. A three-stall, side-load garage with extra storage completes the home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

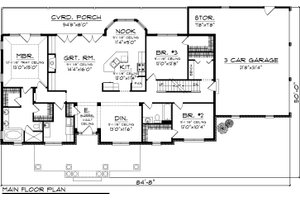

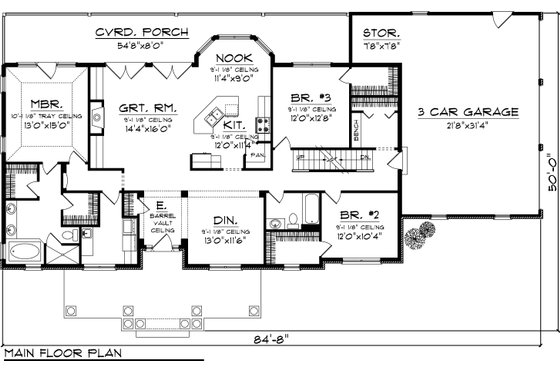

Floor Plan - Main Floor Plan


Floor Plan - Other Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 3


Depth : 50'
Height : 25' 10"
Width : 84' 8"


Total : 2016 sq/ft
Bonus: 453 sq/ft height 8'
First Floor: 2016 sq/ft height 9'
Garage: 768 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Bonus Ceiling : 8'
Ceiling Details : Entry Barrel VaultMaster Bdrm 10' Tray
Main Ceiling : 9'


Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone
Framing : 2 x 6
Insulation : 19

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Play Flex Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch



width 84' 8" x depth 40'

Bathroom 2:

width 8' 5" x depth 5' 10"

Bedroom 2:

width 12' x depth 10' 4"

Bedroom 3:

width 12' x depth 12' 8"


453 sq/ft width 21' 6" x depth 11' 8"

BR #2 closet:

42 sq/ft width 8' 5" x depth 5'

BR #3 closet:

33 sq/ft width 7' 4" x depth 4' 6"


width 11' 4" x depth 9'


width 11' 4" x depth 9'

Entry closet:

width 2' 1" x depth 3' 8"


width 6' 7" x depth 8' 6"


768 sq/ft width 21' 8" x depth 31' 4"

Garage Storage:

width 7' 8" x depth 7' 8"

Great Room:

width 14' 4" x depth 16'


width 12' x depth 11' 4"

Laundry room:

64 sq/ft width 8' 10" x depth 7' 4"

Master Bath:

width 11' 7" x depth 10'

Master Bedroom:

width 13' x depth 15'

Master WIC #1:

27 sq/ft width 5' x depth 5' 5"

Master WIC #2:

28 sq/ft width 5' 6" x depth 5'

Mud Room:

40 sq/ft width 7' 4" x depth 5' 6"


width 4' x depth 4'

Porch Front:

width 31' x depth 13'

Porch Rear:

width 54' 8" x depth 8'

What's included in this plan set

See a sample plan set
  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*See important information before purchasing


Plan Options

5 Copy Set

5 printed plan sets mailed to you.

8 Copy Set

8 printed plan sets mailed to you.


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for level lot, lower level of home partially or fully underground.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
