Its full, wooden-railed front porch gives a welcoming appearance to this updated craftsman home plan. A raised eating bar rims one edge of the work island in the spacious, up-to-date kitchen. The owners' suite boasts a roomy bathroom and walk-in closet. Two bedrooms, a bathroom, loft and good-sized bonus room are upstairs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

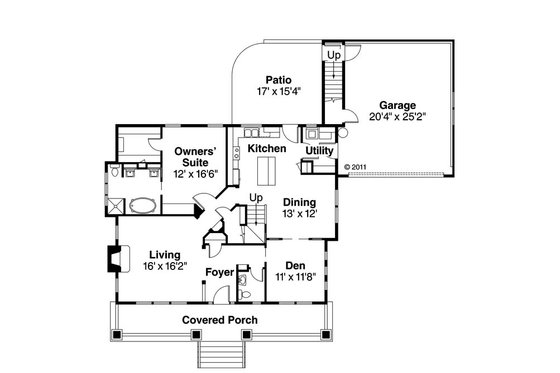

Floor Plan - Main Floor
Floor Plan - Other Floor

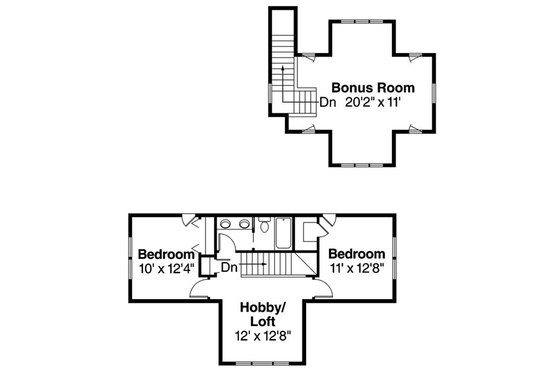

Floor Plan - Upper Floor
Full Specs & Features
First Floor: 1433 sq/ft
Second Floor: 617 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : 2"x6"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Covered Front Porch
Grill Deck Sundeck
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
135 sq/ft width 11' x depth 12' 4"
123 sq/ft width 10' x depth 12' 4"
Bonus Room - Finished:
221 sq/ft width 20' 2" x depth 11'
128 sq/ft width 11' x depth 11' 8"
128 sq/ft width 11' x depth 11' 8"
548 sq/ft width 21' 8" x depth 25' 4"
264 sq/ft width 16' 4" x depth 16' 2"
164 sq/ft width 12' x depth 13' 8"
198 sq/ft width 12' x depth 16' 6"
260 sq/ft width 17' x depth 15' 4"
